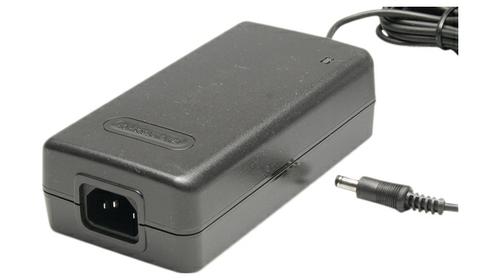

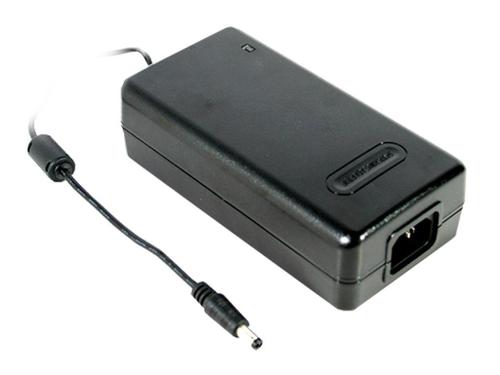

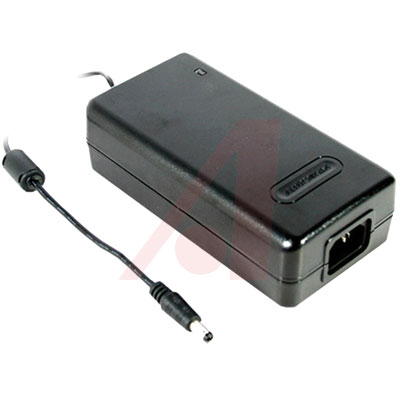

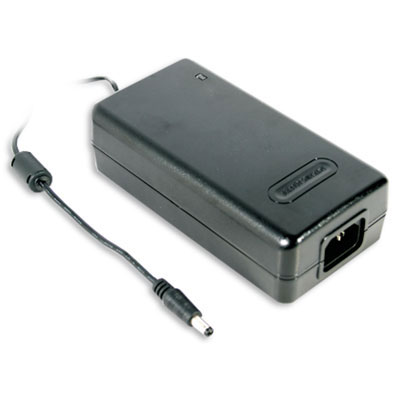

Plug-In Adapter Single-OUT 24V 2.08A 50W Carton
**Features:
* **Desktop Style with Medical Safety Certificates
* Changeable DC Plug MOQ May Be Required
* 3- Pole AC Inlet
* Class I Power
* High Efficiency Up to 80%
* Protections: Short Circuit/Overload/Over Voltage/Over Temperature
* Fixed Switching Frequency and Regulation
* LED Indicator for Power On
* Fully Enclosed Plastic Case
* 2-Year Warranty **Additional Features:**
* Rated Output Power: 50 W
* Output Voltage: 24 VDC
* Output Current: 2.08 A
* Input Voltage Range: 90-264 VAC/135-370 VDC
* Efficiency: 78%
* Overload: 150-350% Rated Output Power
* Overload Protection Type: Hiccup Mode, Recovers Automatically After Fault Condition is Removed
* Over Voltage: 110-140% Rated Output Voltage
* Over Voltage Protection Type: Hiccup Mode, Recovers Automatically After Fault Condition is Removed
* Output Cable Length: 6 Ft.
额定功率 50 W
输出接口数 1
输出电压 24 VDC
输出电流 2.08 A
输出功率 49.9 W
输出电流Max 2.08 A
输入电流Min 1.5 A
输出功率Max 50 W
工作温度Max 65 ℃
工作温度Min 0 ℃
输入电压 90VAC ~ 264VAC
高度 43.2 mm
电缆长度 6 Ft
工作温度 0℃ ~ 65℃
产品生命周期 Not Recommended for New Designs
包装方式 Carton
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8504409510
