Acceleration Sensor Development Tools 6DOF IMU 2 click

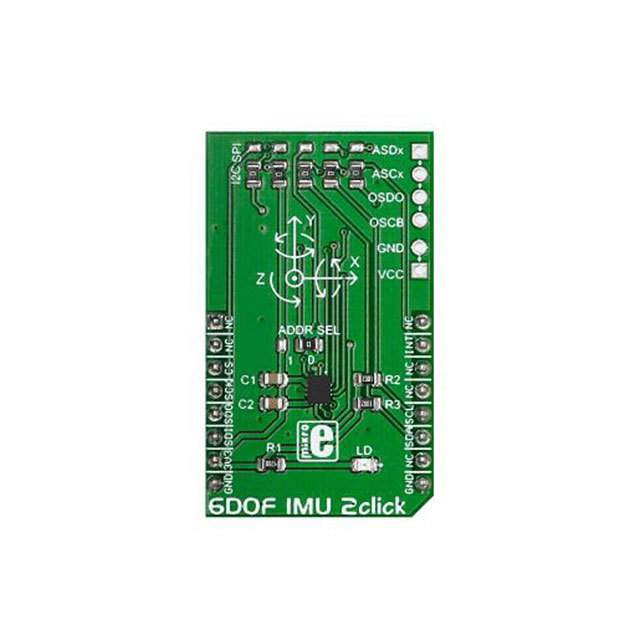

**6DOF IMU 2 click is a mikroBUS** add-on board with Bosch"s BMI160 low power inertial measurement unit IMU. The BMI160 is capable of precise acceleration and angular rate gyroscopic measurement.
**Features:**
* Interrupts for motion detection
* I2C and SPI Interface
* 3.3V power supply
* Capable of handling external sensor data
* Very small footprint
* Android Lollipop compatible
* Very low-power consumption
The IMU consists of a state-of-the-art 3-axis, low-g accelerometer, and a low-power 3-axis gyroscope, designed for 6-axis and 9-axis applications. The BTI160 also includes built-in power management unit PMU for advanced power management and power-saving modes, as well as allocated FIFO buffer of 1024 bytes for handling external sensor data.
6DOF IMU 2 click communicates with the target MCU through the I2C or SPI bus user-selectable, with additional functionality provided by the INT pin for enhanced autonomous motion detection.
The board is designed to use a 3.3 power supply only.
