AVX NOJB106M010RWJ 电容, 封装类型B, 10uF, 10V
If your circuit requires a capacitor that does not exhibit any piezo affect or voltage dependency then look no further, this niobium electrolytic capacitor from is for you! It can withstand a voltage of 10 VDC. This niobium oxide capacitor has a maximum operating temperature of 105 °C. Its leakage current is 2 μA. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. It has a tolerance of 20%. Its capacitance value is 10uF. This product is 3.5 mm long, 1.9 mm tall and 2.8 mm deep.
额定电压DC 10.0 V
电容 10 µF
等效串联电阻ESR 2.2 Ω
容差 ±20 %
纹波电流 0.215 A
工作温度Max 105 ℃
工作温度Min 105 ℃
额定电压 10 V
安装方式 Surface Mount
引脚数 2
封装公制 3225
封装 1210

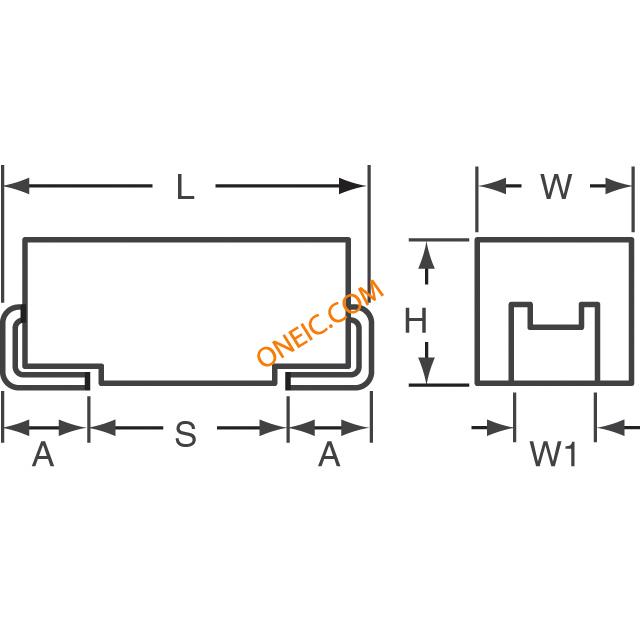

长度 3.5 mm
宽度 2.8 mm
高度 1.9 mm
封装公制 3225
封装 1210
介质材料 Niobium Oxide
工作温度 -55℃ ~ 105℃
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 车用, Automotive
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
NOJB106M010RWJ AVX 艾维克斯 | 当前型号 | 当前型号 |
MCCTB106M010 Multicomp | 功能相似 | NOJB106M010RWJ和MCCTB106M010的区别 |
