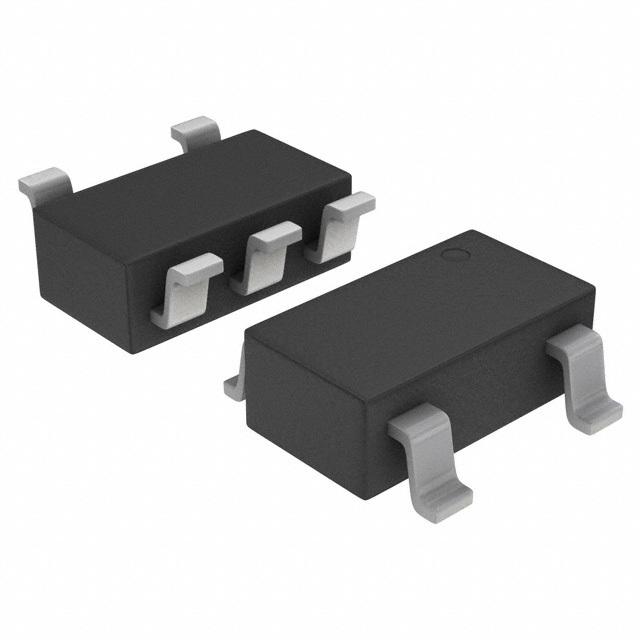

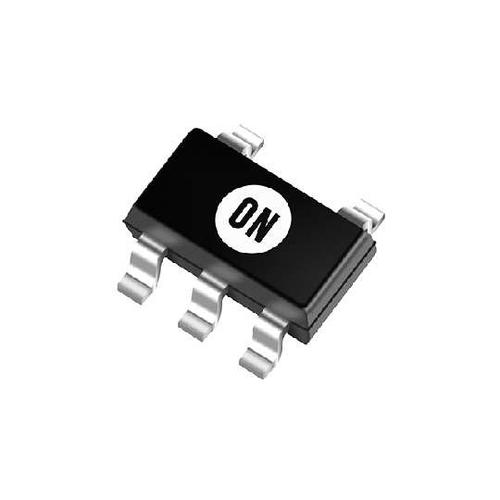

ON SEMICONDUCTOR NUP4004M5T1G TVS二极管, TVS, NUP40 Series, 双向, 5 V, TSOP, 5 引脚
The is a 5-pin bidirectional quad TVS Array designed for applications requiring transient overvoltage protection capability. It is intended for use in transient voltage and ESD sensitive equipment such as computers, printers, cell phones, medical equipment and other applications. Its integrated design provides bidirectional protection for four separate lines. This device is ideal for situations where board space is a premium.
- .
- Low leakage current
- .
- Low capacitance
- .
- Provides ESD protection for IEC 61000-4-2, 15kV Air, 8kV Contact
- .
- -40 to 125°C Operating temperature range
工作电压 5.00 V
电容 32 pF
无卤素状态 Halogen Free
击穿电压 7 V
通道数 4
针脚数 5
测试电流 1 mA
最大反向击穿电压 8 V
最小反向击穿电压 7 V
工作温度Max 125 ℃
工作温度Min -40 ℃
安装方式 Surface Mount
引脚数 5
封装 TSOT-23-5
长度 3 mm
宽度 1.5 mm
高度 1 mm
封装 TSOT-23-5
工作温度 -40℃ ~ 125℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 工业, Industrial, Communications & Networking, Computers & Computer Peripherals, 通信与网络, 汽车级, 消费电子产品, Consumer Electronics, 计算机和计算机周边
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
