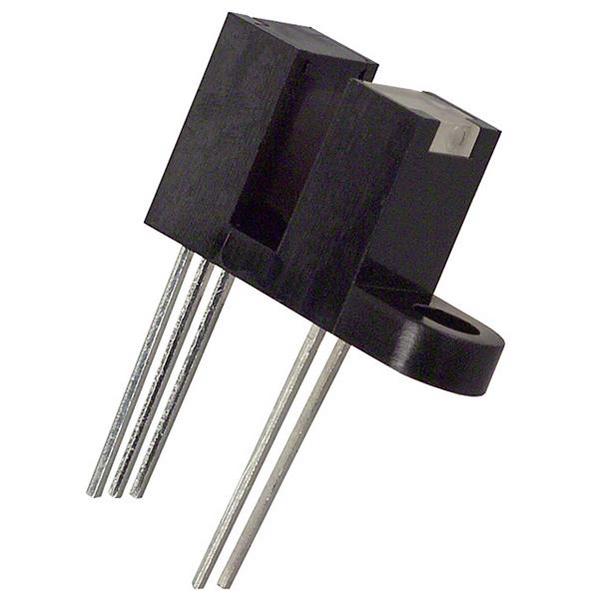

OPTEK TECHNOLOGY OPB941W55Z Transmissive Photo Interrupter, Open Collector, Panel / Chassis, 3.18mm, 1.27mm, 40mA, 2V
Description:
The OPB930 and OPB940 series of Photologic® photo integrated circuit switches provide optimum flexibility for the design engineer. Building from a standard housing with a 0.125” 3.18 mm wide slot, a user can specify the type and polarity of TTL output, discrete shell material, aperture width and either 0.350” 8.9 mm long pins L Series or 24” 610 mm AWG, UL listed wire leads W Series.
Features:
• Choice of aperture size
• Choice of output configurations
• Choice of opaque or IR transmissive shell
• Choice of pins L or wires W
• 0.125” 3.18 mm slot width
• 0.320” 8.128 mm lead spacing for PCBoard side mounting
• Data rates to 250 kBaud
额定电压DC 10.0 V
输出电压 35.0 V, 30.0 V
供电电流 15 mA
通道数 1
正向电压 1.7 V
波长 880 nm
输入电流 20.0 mA
峰值波长 880 nm
耗散功率 300 mW
上升时间 70 ns
正向电流 40 mA
正向电流Max 40 mA
下降时间 70 ns
下降时间Max 70 ns
上升时间Max 70 ns
工作温度Max 70 ℃
工作温度Min -40 ℃
耗散功率Max 300 mW
电源电压 4.75V ~ 5.25V
引脚数 5
封装 Pre-Wired
长度 23.75 mm
宽度 12.95 mm
高度 10.54 mm
封装 Pre-Wired
工作温度 -40℃ ~ 70℃ TA
产品生命周期 Unknown
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
OPB941W55Z TT Electronics/Optek Technology | 当前型号 | 当前型号 |
OPB941W55 TT Electronics/Optek Technology | 完全替代 | OPB941W55Z和OPB941W55的区别 |
