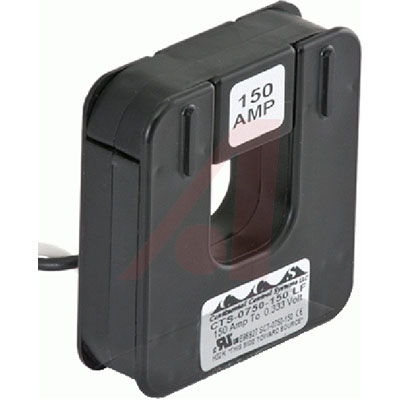

CURRENT TRANSFORMER, 150A; Input Current: 150A; Turns Ratio: Not Applicable; Transformer Mounting: Panel
These split-core current transformers CTs from Continental Control Systems offer an easy, safe, and inexpensive method for monitoring electrical energy usage. deal for retrofit applications, the split core makes it possible to attach the CT without disturbing existing wiring. Just open the CT, slip it over the wire, and snap the CT closed. Once assembled, the CTs have no exposed metal parts.
**Features:**
* Split Core for Easy Installation Ideal for Retrofit
* No Exposed Metal Parts When Assembled
* Safer to Install and Use Than CTs With a Current Secondary
* UL and CE Recognized and RoHS Compliant
输入电流 150 A
Body Style Split Core
Brand/Series OPTOEMU Series
Configuration Enclosed
Current, Primary 150 A
Function Current Sensing
Mounting Type Wire
Output 0.333 VAC
Range, Measurement 0.75 In.Inner Diameter
Sensing Mode Current
Size 150 A
Special Features No Exposed Metal Parts, 0.333 VAC Output
Standards UL and CE Recognized
Technology Internal Burden Resistor
Type Current
RoHS标准 RoHS Compliant
