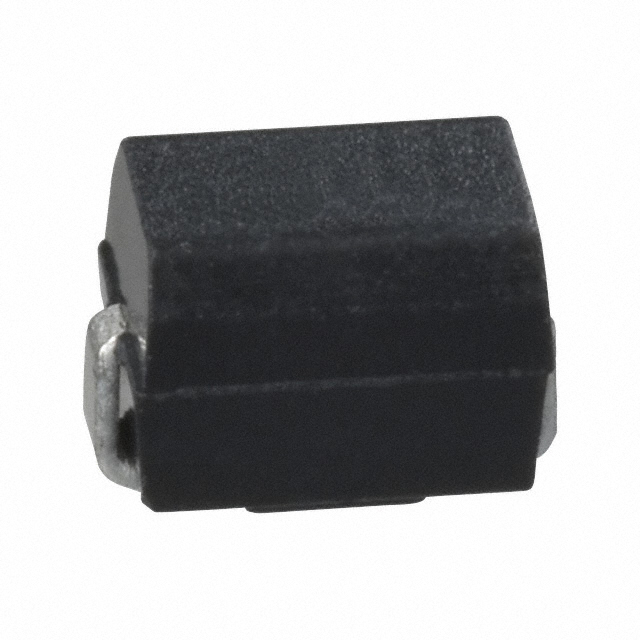

PM1812-221J-RC

SMT贴片电感 SMT Chip Inductors

* Formerly a model * High resistance to heat and humidity * Resistance to mechanical shock and pressure * Accurate dimensions for automatic surface mounting * Inductance range: 1 to 150 µH * RoHS compliant

得捷:
FIXED IND 220UH 100MA 10 OHM SMD

立创商城:
220nH ±5% 100mA 10Ω

贸泽:
固定电感器 220uH 5%

艾睿:
This general purpose chip PM1812-221J-RC surface mount inductor from Bourns is placed on the surface of a PCB during surface mount manufacturing processing. This SMD inductor has an operating temperature range of -40 °C to 125 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This device utilizes wirewound technology. This product is 4.5Typ mm long, 3.4 mm tall and 3.2Typ mm deep. This SMD inductor has a maximum DC current of 100m A with a maximum resistance of 10 Ohm. It has a tolerance of 5%. Its test frequency is 796K Hz, while its minimum self-resonant frequency is 4M Hz. It has an inductance of 220u H.

安富利:
Ind Chip Molded Bobbin Core 220uH 5% 796KHz 40Q-Factor Ferrite 100mA 1812 T/R

Chip1Stop:
Ind Chip Molded Bobbin Core 220uH 5% 796KHz 40Q-Factor Ferrite 100mA 4.5 x 3.2 mm T/R

Verical:
Inductor General Purpose Chip Molded Wirewound 220uH 5% 796KHz 40Q-Factor Ferrite 100mA 10Ohm DCR 1812 T/R

Newark:
# BOURNS JW MILLER  PM1812-221J-RC  Surface Mount High Frequency Inductor, PM1812 Series, 220 µH, 100 mA, 1812 [4532 Metric], Wirewound

MASTER:
Inductor General Purpose Chip Molded Wirewound 220uH 5% 796KHz 40Q-Factor Ferrite 100mA 10Ohm DCR 1812 T/R

Electro Sonic:
Inductor General Purpose Chip Molded Wirewound 220uH 5% 796KHz 40Q-Factor Ferrite 100mA 10Ohm DCR 1812 T/R
