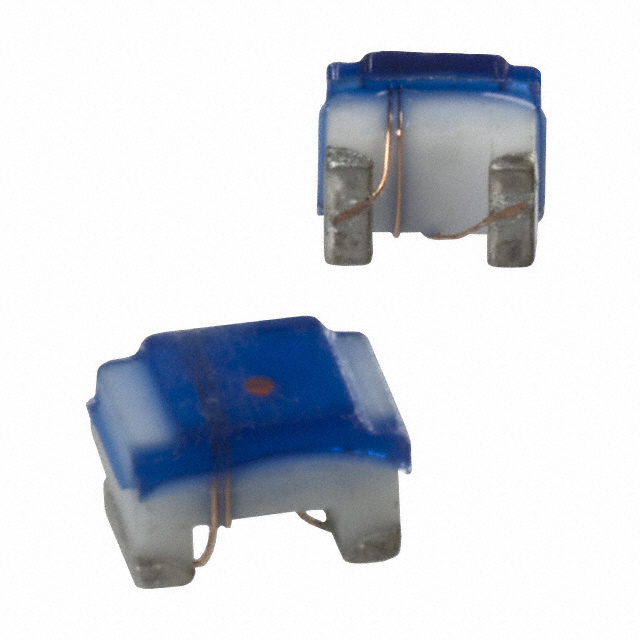

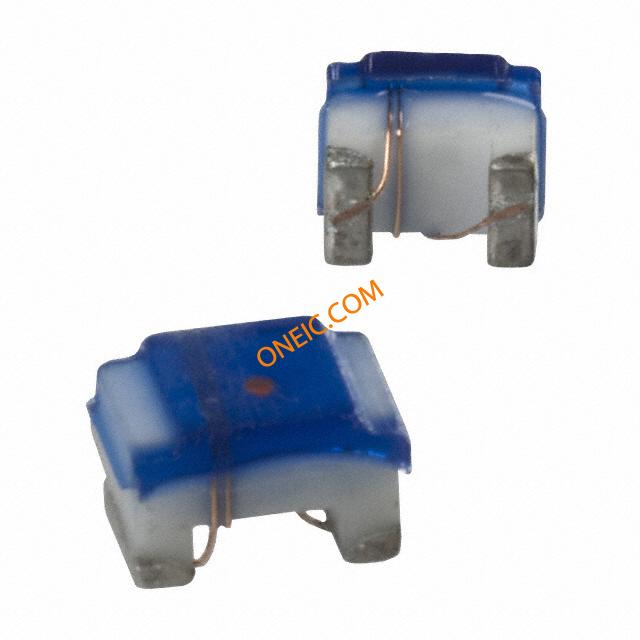

PM0805-8N2M-RC

高Q值的片式电感器 High Q Chip Inductors

无屏蔽 绕线 器 60 毫欧 0805（2012 公制）

得捷:
FIXED IND 8.2NH 600MA 60MOHM SMD

立创商城:
8.2nH ±20% 600mA 120mΩ

艾睿:

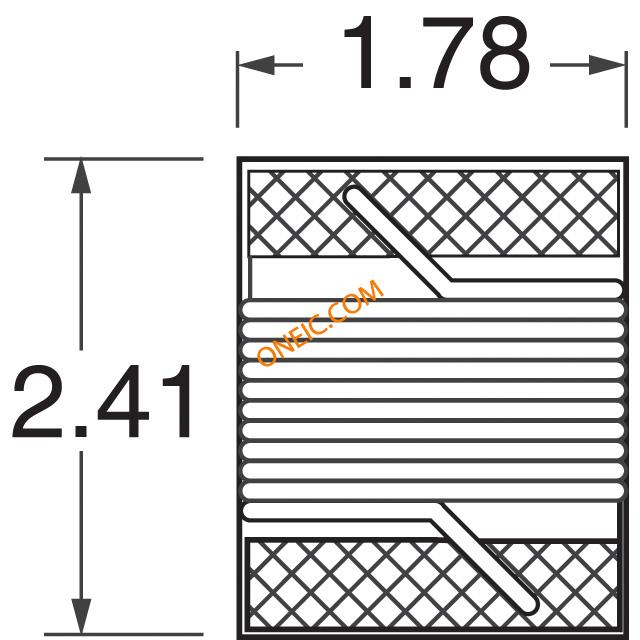

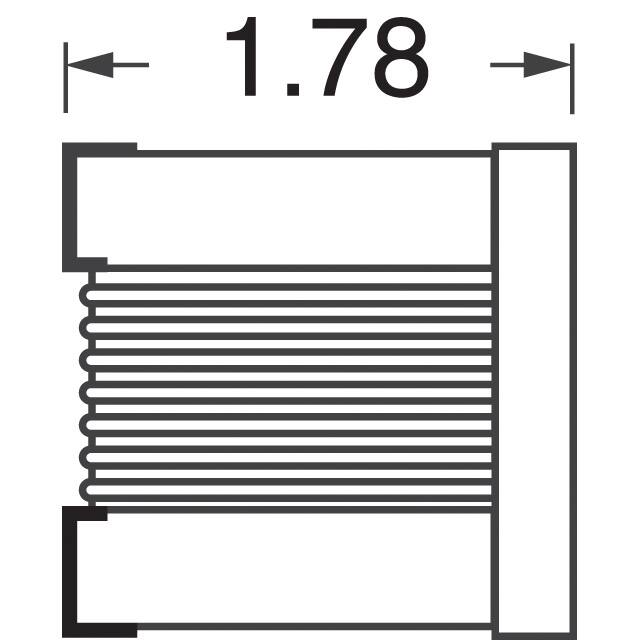

This chip PM0805-8N2M-RC surface mount inductor from Bourns is placed on the surface of a PCB during surface mount manufacturing processing. This SMD inductor has an operating temperature range of -40 °C to 125 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. It has an inductance of 8.2n H. Its test frequency is 250M Hz, while its minimum self-resonant frequency is 5.5G Hz. This product is 2.3 mm long, 1.5 mm tall and 1.7 mm deep. This device utilizes wirewound technology. It has a tolerance of 20%. This SMD inductor has a maximum DC current of 600m A with a maximum resistance of 60m Ohm.

Verical:
Inductor RF Wirewound 0.0082uH 20% 250MHz 50Q-Factor Alumina 0.6A 0.12Ohm DCR 0805 T/R

Newark:
# BOURNS JW MILLER  PM0805-8N2M-RC  Surface Mount High Frequency Inductor, PM0805 Series, 8.2 nH, 600 mA, 0805 [2012 Metric], Wirewound

Electro Sonic:
Inductor RF Wirewound 0.0082uH 20% 250MHz 50Q-Factor Alumina 0.6A 0.12Ohm DCR 0805 T/R
