PM5022-220M-RC

BOURNS JW MILLER  PM5022-220M-RC  功率电感, 22uH, 20%容差, SMD

无屏蔽 绕线 器 45 毫欧 非标准

得捷:
FIXED IND 22UH 3.6A 45 MOHM SMD

立创商城:
22uH ±20% 3.6A 45mΩ

贸泽:
固定电感器 22uH 20%

e络盟:
功率电感, 22uH, 20%容差, SMD

艾睿:

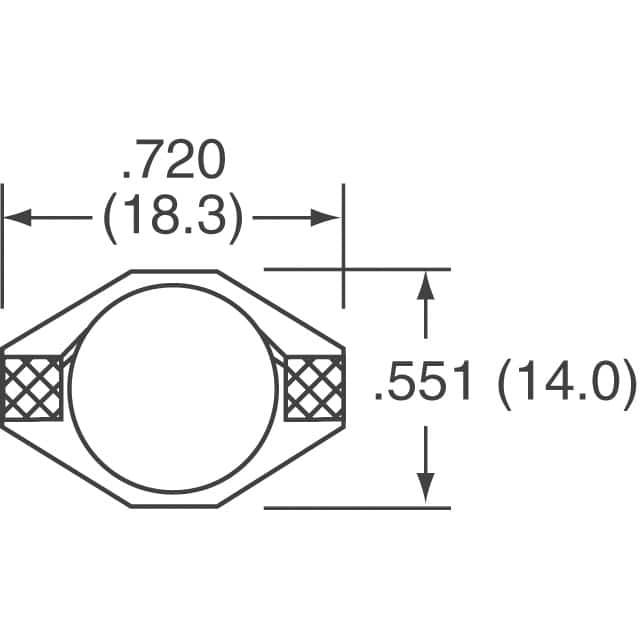

Make any circuit look clean and compact using this power PM5022-220M-RC surface mount inductor from Bourns. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 125 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This product is 18.6 mm long, 6.9 mm tall and 14.3 mm deep. This device is made with bobbin core technology. Its test frequency is 100K Hz, while its minimum self-resonant frequency is 13MTyp Hz. It has an inductance of 22u H. This SMD inductor has a maximum DC current of 3.6 A with a maximum resistance of 45m Ohm. It has a tolerance of 20%.

Allied Electronics:
Inductor; SMT Pwr; Non-Shielded; 22uH; 20%; 45 Ohm DCR

Chip1Stop:
Inductor Power Bobbin Core 22uH 20% 100KHz 22Q-Factor Ferrite 3.6A 45mOhm DCR T/R

Verical:
Inductor Power Bobbin Core 22uH 20% 100KHz 22Q-Factor Ferrite 3.6A 0.045Ohm DCR T/R

Newark:
# BOURNS JW MILLER  PM5022-220M-RC  Surface Mount Power Inductor, PM5022 Series, 22 µH, 3.6 A, 6.7 A, Unshielded, 0.045 ohm

MASTER:
Inductor Power Bobbin Core 22uH 20% 100KHz 22Q-Factor Ferrite 3.6A 45mOhm DCR T/R

Electro Sonic:
Inductor Power Bobbin Core 22uH 20% 100KHz 22Q-Factor Ferrite 3.6A 45mOhm DCR T/R
