PM5022-681M-RC

680uH ±20% 700mA

680 µH 无屏蔽 绕线 器 700 mA 1.2 欧姆 非标准

得捷:
FIXED IND 680UH 700MA 1.2OHM SMD

艾睿:

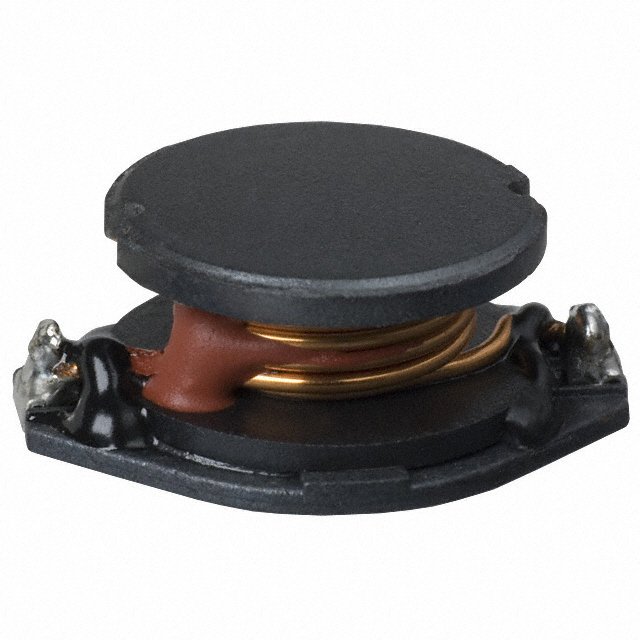

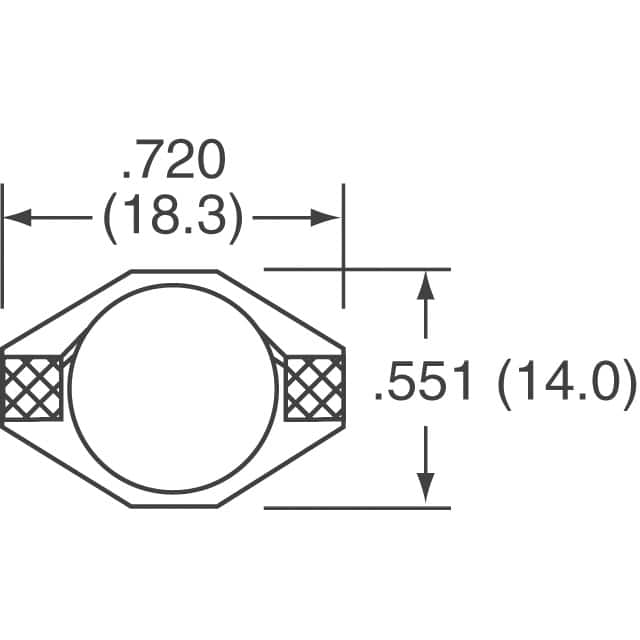

This power PM5022-681M-RC surface mount inductor from Bourns is ideal for applications where space is a major influence of circuit design. This SMD inductor has an operating temperature range of -40 °C to 125 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This device utilizes bobbin core technology. It has an inductance of 680u H. This product is 18.6 mm long, 6.9 mm tall and 14.3 mm deep. This SMD inductor has a maximum DC current of 700m A with a maximum resistance of 1.2 Ohm. It has a tolerance of 20%. Its test frequency is 100K Hz, while its minimum self-resonant frequency is 2.5MTyp Hz.

Allied Electronics:
Inductor; SMT Pwr; Non-Shielded; 680uH; 20%

Chip1Stop:
Inductor Power Bobbin Core 680uH 20% 100KHz 12Q-Factor Ferrite 700mA 1.2Ohm DCR T/R

Verical:
Inductor Power Bobbin Core 680uH 20% 100KHz 12Q-Factor Ferrite 700mA 1.2Ohm DCR T/R

Newark:
# BOURNS JW MILLER  PM5022-681M-RC  Surface Mount Power Inductor, PM5022 Series, 680 µH, 700 mA, 1.2 A, Unshielded, 1.2 ohm

MASTER:
Inductor Power Bobbin Core 680uH 20% 100KHz 12Q-Factor Ferrite 700mA 1.2Ohm DCR T/R

Electro Sonic:
Inductor Power Bobbin Core 680uH 20% 100KHz 12Q-Factor Ferrite 700mA 1.2Ohm DCR T/R
