PI74VCX16244AE

IC BUFF DVR TRI-ST 16Bit 48TSSOP

Description

’s PI74VCX16244 buffer/driver is designed specifically to improve both the performance and density of 3-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters.

Features

• The PI74VCX Family is designed for low voltage operation, CD = 1.8V to 3.6V

• 3.6V Tolerant Inputs and Outputs

• Supports Live Insertion

• Balanced Drive, ±24mA

• Uses patented Noise Reduction Circuitry

• Typical VOLP Output Ground Bounce <0.6V at VDD = 2.5V, TA = 25ºC

• Typical VOHV Output VOH Undershoot < -0.6V at VDD = 2.5V, TA = 25ºC

• Power-Off high impedance inputs and outputs

• Industrial operation at –40°C to +85°C

• Packaging Pb-free & Green available:

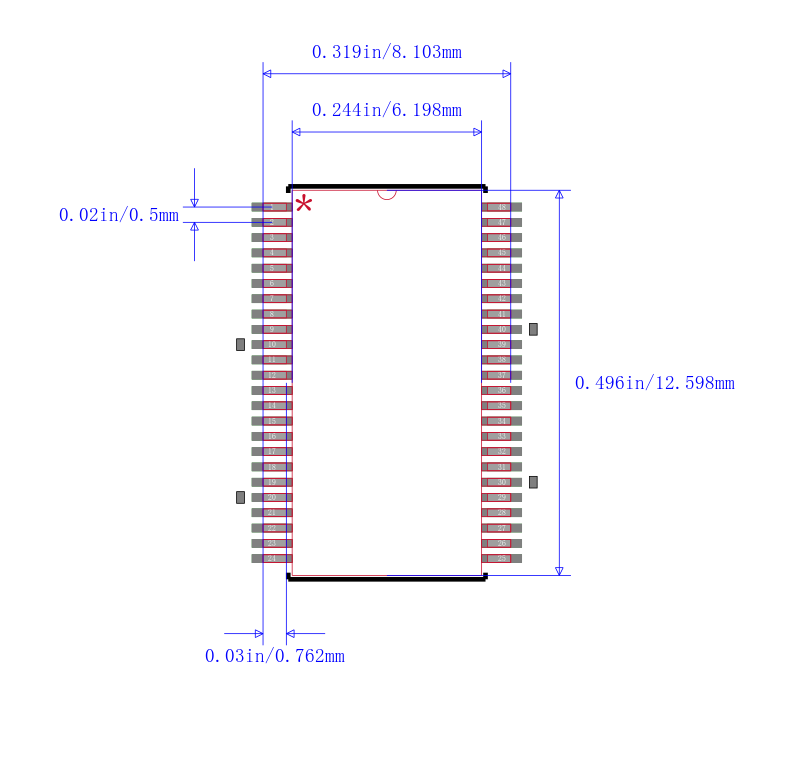

   – 48-pin 240-mil wide plastic TSSOP A
