PN-1343概述

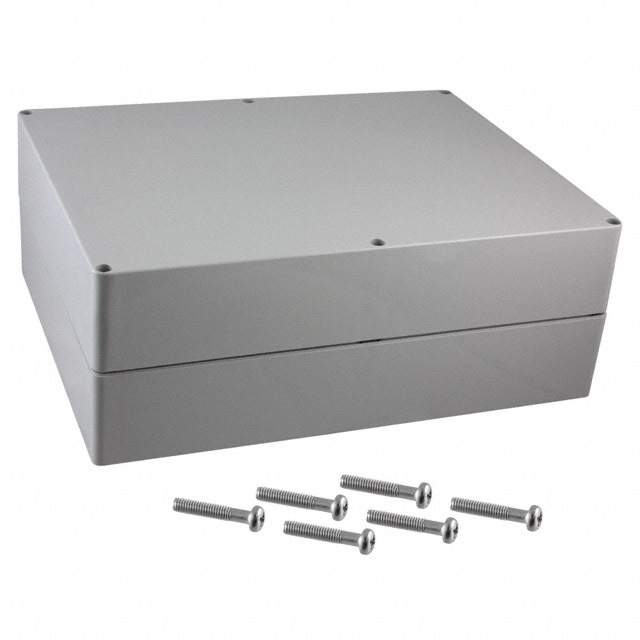

BUD INDUSTRIES  PN-1343  机盒

NEMA 4X Enclosures, High Impact ABS, Polycarbonate Body Material

These polycarbonate and high-impact ABS molded enclosures meet NEMA 4X specifications and are ideal for use in the electrical and electronic industries. Available in three different versions:

* Designed to IP 65 of IEC 529 and NEMA 1, 2, 4, 4x, 12, and 13 Specifications

* Cover Attaching Screws Are Outside the Sealing Area, Preventing Ingress of Moisture and Dust

* Internal Bosses Allow Mounting of PCBs Horizontally or for Connection of Terminals, Etc., into Threaded Brass Inserts

* Internal Guide Slots for Mounting PCB Assemblies Vertically

* Cover Screws Are M-4 Stainless Steel, Non-Magnetic and Fasten into Threaded Brass Inserts

* The Polycarbonate Material Has an Operating Temperature of -40°C to +100°C

* ABS Material Has an Operating Temperature of -20°C to +80°C

PN-1343中文资料参数规格
技术参数

易燃性等级 UL 94 V-2

外形尺寸

长度 300.0248 mm

宽度 230 mm

高度 111 mm

厚度 4.06 mm

物理参数

外壳颜色 Gray

颜色 Gray

材质 Polycarbonate

重量 952.5 g

外壳材质 Polycarbonate

其他

产品生命周期 Active

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 3926903500
