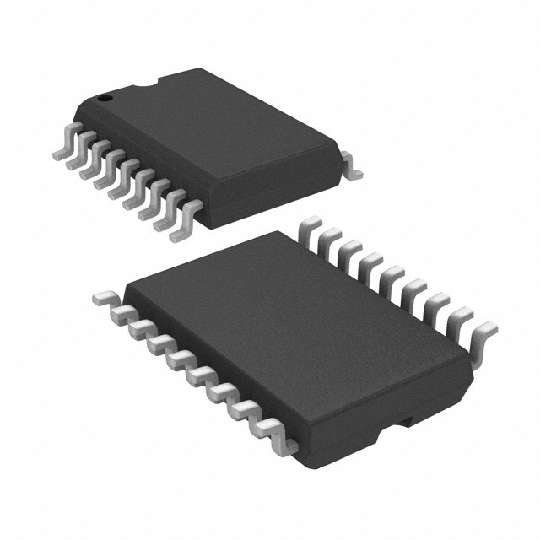

PIC16LF84AT-04/SO

18引脚闪存/ EEPROM的8位微控制器 18-pin Flash/EEPROM 8-Bit Microcontrollers

GENERAL DESCRIPTION

The PIC16F8X is a group in the PIC16CXX family of low-cost, high-performance, CMOS, fully-static, 8-bit microcontrollers. This group contains the following devices:

• PIC16F83

• PIC16F84

• PIC16CR83

• PIC16CR84

All PICmicro™ microcontrollers employ an advanced RISC architecture. PIC16F8X devices have enhanced core features, eight-level deep stack, and multiple internal and external interrupt sources. The separate instruction and data buses of the Harvard architecture allow a 14-bit wide instruction word with a separate 8-bit wide data bus. The two stage instruction pipeline allows all instructions to execute in a single cycle, except for program branches which require two cycles. A total of 35 instructions reduced instruction set are available. Additionally, a large register set is used to achieve a very high performance level.

High Performance RISC CPU Features:

• Only 35 single word instructions to learn

• All instructions single cycle except for program branches which are two-cycle

• Operating speed: DC - 10 MHz clock input

                       DC - 400 ns instruction cycle



• 14-bit wide instructions

• 8-bit wide data path

• 15 special function hardware registers

• Eight-level deep hardware stack

• Direct, indirect and relative addressing modes

• Four interrupt sources:

   - External RB0/INT pin

   - TMR0 timer overflow

   - PORTB interrupt on change

   - Data EEPROM write complete

• 1000 erase/write cycles Flash program memory

• 10,000,000 erase/write cycles EEPROM data memory

• EEPROM Data Retention > 40 years

Peripheral Features:

• 13 I/O pins with individual direction control

• High current sink/source for direct LED drive

   - 25 mA sink max. per pin

   - 20 mA source max. per pin

• TMR0: 8-bit timer/counter with 8-bit programmable prescaler

Special Microcontroller Features:

• In-Circuit Serial Programming ICSP™ - via two pins ROM devices support only Data EEPROM programming

• Power-on Reset POR

• Power-up Timer PWRT

• Oscillator Start-up Timer OST

• Watchdog Timer WDT with its own on-chip RC oscillator for reliable operation

• Code-protection

• Power saving SLEEP mode

• Selectable oscillator options

CMOS Flash/EEPROM Technology:

• Low-power, high-speed technology

• Fully static design

• Wide operating voltage range:

   - Commercial: 2.0V to 6.0V

   - Industrial: 2.0V to 6.0V

• Low power consumption:

   -    - 15 µA typical @ 2V, 32 kHz

   -
