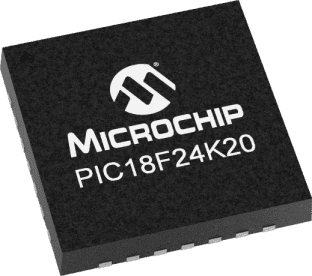

MICROCHIP PIC18F24K20T-I/ML 微控制器, 8位, 闪存, AEC-Q100, PIC18FxxKxx, 64 MHz, 16 KB, 768 Byte, 28 引脚, QFN
The is a high-performance PIC18 family 8-bit powerful 200 nanosecond instruction execution yet easy-to-program CMOS flash based Microcontroller packs powerful PIC®RISC architecture with up to 16 MIPS of processing power with benchmark nanoWatt XLP extreme low power consumption. This product offer all of the advantages of the well recognized high-performance x16 architecture with standardized features including 16kB of addressable program memory size, 768bytes of data memory size, 25 general-purpose I/O pins, two comparators and 10-channel 10-bit analog-to-digital A/D converter. This device operates at a maximum frequency of 64MHz wide operating voltage of 1.8 to 3.6V.
频率 64 MHz
电源电压DC 1.80V min
针脚数 28
时钟频率 64.0 MHz
RAM大小 768 b
位数 8
模数转换数ADC 1
输入/输出数 25 Input
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 1000 mW
电源电压 1.8V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 1.8 V
安装方式 Surface Mount
引脚数 28

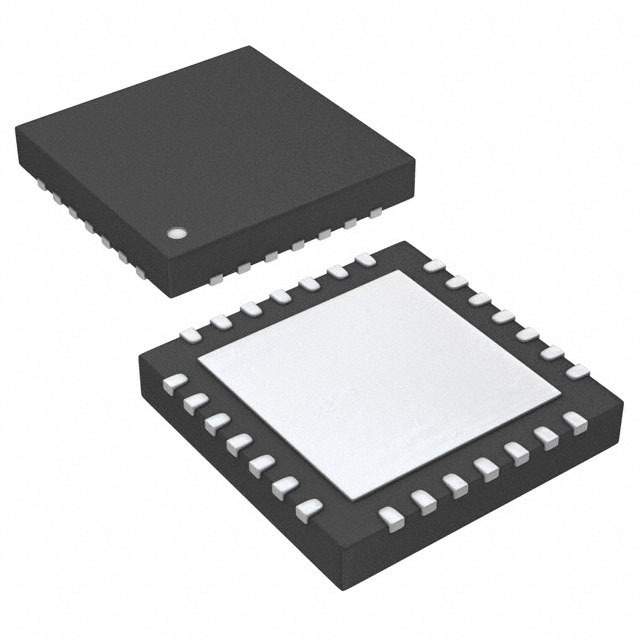

封装 QFN-28
长度 6 mm
宽度 6 mm
高度 0.88 mm
封装 QFN-28
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 工业, Industrial, Motor Drive & Control, Security, 照明, Lighting, 消费电子产品, 安全, Medical, Automotive, 医用, 电机驱动与控制, Consumer Electronics, 车用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 3A991.a.2
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
PIC18F24K20T-I/ML Microchip 微芯 | 当前型号 | 当前型号 |
PIC18F24K20-I/SS 微芯 | 完全替代 | PIC18F24K20T-I/ML和PIC18F24K20-I/SS的区别 |
PIC18F24K20-I/ML 微芯 | 完全替代 | PIC18F24K20T-I/ML和PIC18F24K20-I/ML的区别 |
PIC18F25K20-I/ML 微芯 | 类似代替 | PIC18F24K20T-I/ML和PIC18F25K20-I/ML的区别 |
