PM3602-33-RC

SMD电感/变压器 SMD Inductor/Transformer

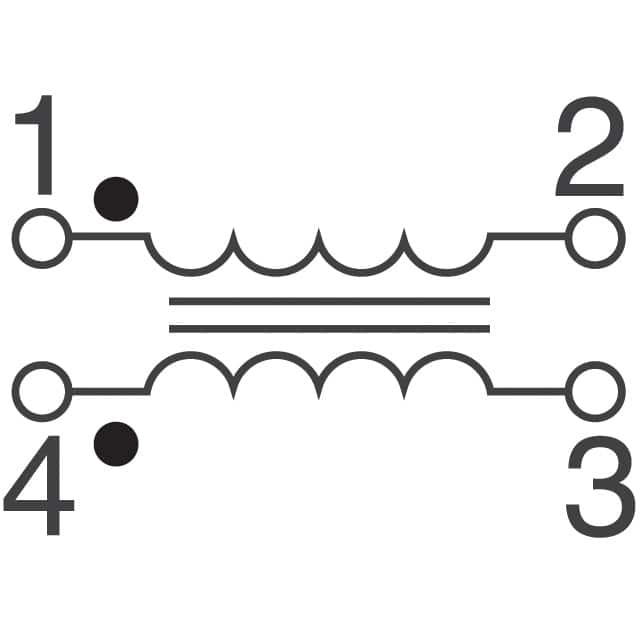

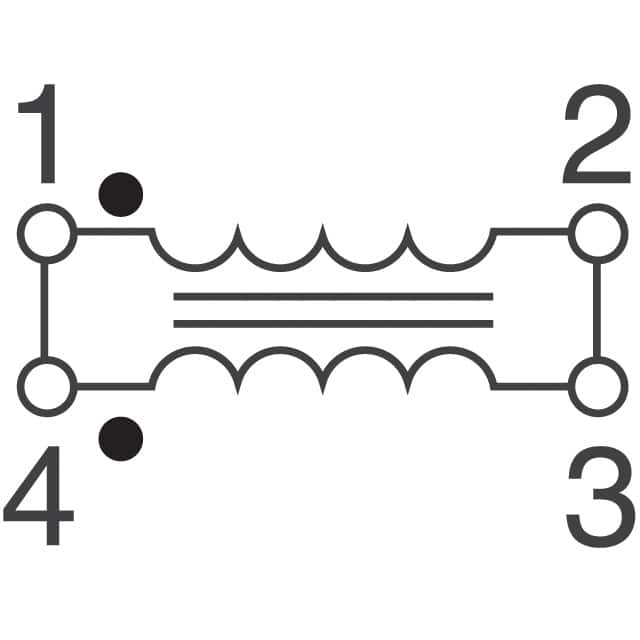

无屏蔽 线圈器阵列 电感 - 串联连接 电感 - 并联连接 140 毫欧最大 直流电阻 DCR - 并联 非标准

得捷:
INDUCT ARRAY 2 COIL 33UH SMD

艾睿:

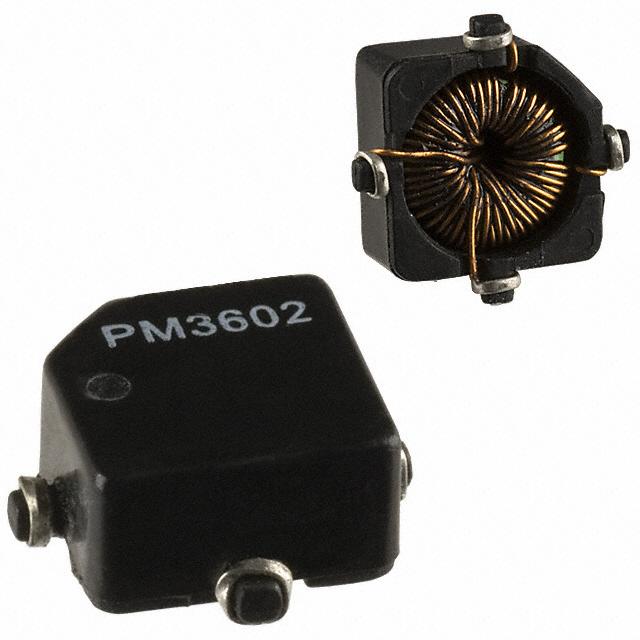

Save valuable space on a PCB with this power PM3602-33-RC surface mount inductor from Bourns. This SMD inductor has a minimum operating temperature of -55 °C and a maximum of 125 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. It has an inductance of 33u|132u H. It has a tolerance of 20%. This SMD inductor has a maximum DC current of 980m|490m A with a maximum resistance of 140m|560m Ohm. This device is made with wirewound technology. This product is 11.48 mm long, 5.72 mm tall and 11.48 mm deep.

TME:

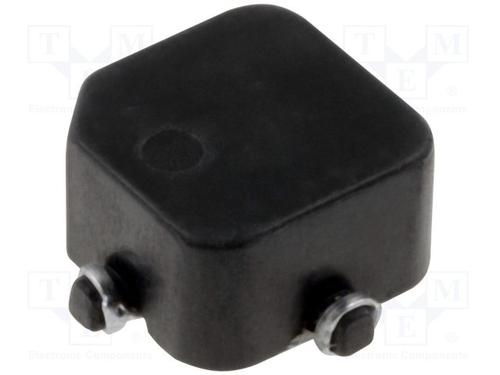

Inductor: wire; SMD; 11.5x9x5.72mm; ±20%; -55÷125°C; No.of wind:2

Verical:
Inductor Power Wirewound 33uH/132uH 20% Iron 0.98A/0.49A 0.14Ohm/0.56Ohm DCR T/R

Newark:
# BOURNS JW MILLER  PM3602-33-RC  Inductor, Power, 33 µH, 20%, 0.14 ohm, 980 mA, 11.48mm x 8.99mm x 5.72mm

MASTER:
Inductor Power Wirewound 33uH/132uH 20% Iron 980mA/490mA 140mOhm/560mOhm DCR T/R

Electro Sonic:
Inductor Power Wirewound 33uH/132uH 20% Iron 980mA/490mA 140mOhm/560mOhm DCR T/R
