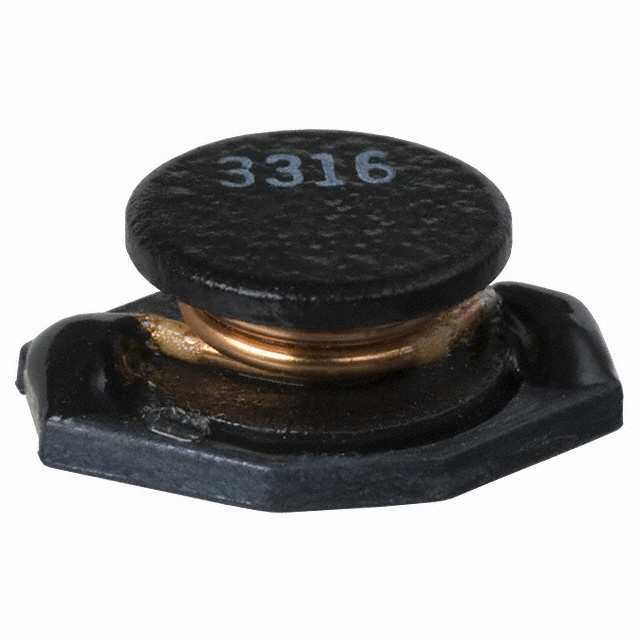

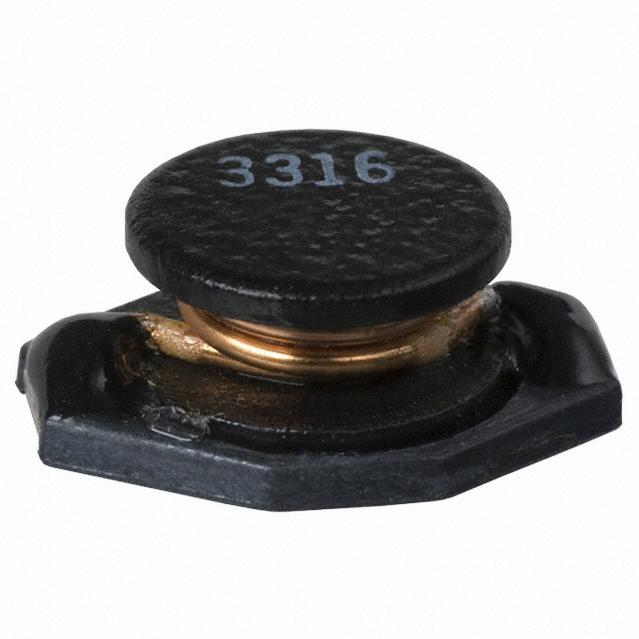

PM3316-4R7M-RC

SMD功率电感 SMD Power Inductors

无屏蔽 绕线 器 19 毫欧 非标准

立创商城:
4.7uH ±20% 4.5A 19mΩ

得捷:
FIXED IND 4.7UH 4.5A 19 MOHM SMD

艾睿:
An ideal space-saving electronic component is this power PM3316-4R7M-RC surface mount inductor from Bourns. This SMD inductor has a minimum operating temperature of -55 °C and a maximum of 125 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This device is made with wirewound technology. This product is 12.9 mm long, 5.3 mm tall and 10.2 mm deep. Its test frequency is 1K Hz, while its minimum self-resonant frequency is 42M Hz. This SMD inductor has a maximum DC current of 4.5 A with a maximum resistance of 19m Ohm. It has a tolerance of 20%. It has an inductance of 4.7u H.

安富利:
Ind Power Wirewound 4.7uH 20% 1KHz 50Q-Factor Ferrite 4.5A T/R

Verical:
Inductor Power Wirewound 4.7uH 20% 1KHz 50Q-Factor Ferrite 4.5A 0.019Ohm DCR T/R

Newark:
# BOURNS JW MILLER  PM3316-4R7M-RC  Surface Mount Power Inductor, PM3316 Series, 4.7 µH, 4.5 A, 5.4 A, Unshielded, 0.019 ohm

Electro Sonic:
Inductor Power Wirewound 4.7uH 20% 1KHz 50Q-Factor Ferrite 4.5A 19mOhm DCR T/R
