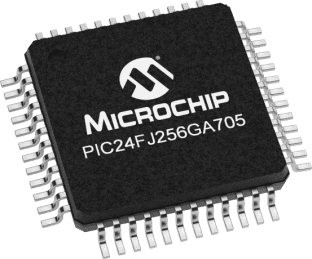

PIC24FJ256GA705-I/PT

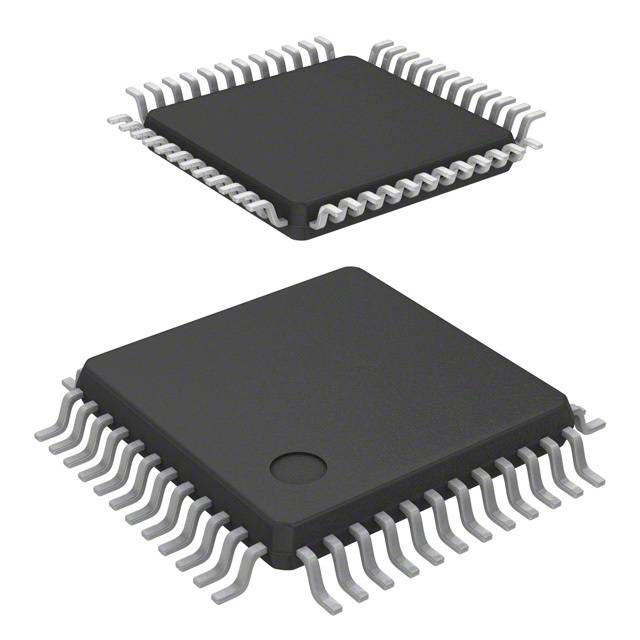

MICROCHIP  PIC24FJ256GA705-I/PT.  16-BIT, 16 MIPS, 256KB FLASH, 16KB RAM 48 TQFP 7X7X1.0MM TRAY 98Y9424 新

The from is a 16bit general purpose microcontroller with 256Kbyte flash and 16Kbyte RAM in 48 pin TQFP package. It offers various power down modes to keep the currents very low. The device features in-circuit serial programming ICSP and in-circuit emulation ICE via two pins, power-on reset POR, brown-out reset BOR and oscillator start-up timer OST, programmable low voltage detect LVD, flexible watchdog timer WDT with its own RC oscillator for reliable operation. This microcontroller has three 16bit timers, two I2C, three variable width SPI, two LIN-USART/IrDA, twelve EPMP address/data line, two configurable logic cell CLC, real time clock and calendar RTCC and JTAG interfaces. Sleep and idle modes selectively shut down peripherals and/or core for substantial power reduction and fast wake-up.

.

Modified harvard architecture up to 16MIPS operation at 32MHz and 8MHz internal oscillator

.

22 GPIO, 6 DMA channels, 10-channel 10/12bit A/D channels and 3 comparators

.

Cyclic redundancy check CRC, 1/3 MCCP 6-output/2-output and 3/3 IC/OC PWM

.

Charge time measurement unit CTMU interface

.

17bit x 17bit single cycle hardware fractional/integer multiplier

.

Supply voltage range from 2V to 3.6V

.

Programmable reference clock output

.

Fail-safe clock monitor operation

.

High current sink/source 18mA/18mA on all I/O pins

.

Operating ambient temperature range from -40°C to +85°C
