TRANSZORB® 瞬态电压抑制器轴向单向 600W，Vishay Semiconductor### 瞬态电压抑制器，Vishay Semiconductor
TRANSZORB® 瞬态电压抑制器轴向单向 600W，Vishay Semiconductor
### 瞬态电压抑制器，Vishay Semiconductor
欧时:

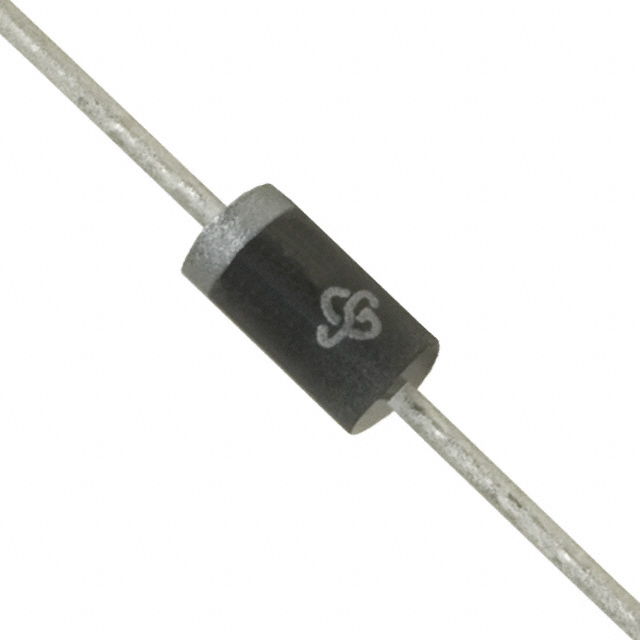

TVS 二极管 Vishay P6KE36A-E3/54 单向, 600W, 49.9V, 2针 DO-204AC封装
立创商城:
Vrwm:30.8V 600W
艾睿:
Prevent your circuits from experiencing malfunctions from electrostatic discharge with this P6KE36A-E3/54 TVS diode from Vishay. This device&s;s maximum clamping voltage is 49.9 V and minimum breakdown voltage is 34.2 V. Its maximum leakage current is 1 μA. Its peak pulse power dissipation is 600 W. Its test current is 1 mA. This TVS diode has a minimum operating temperature of -55 °C and a maximum of 175 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment.
TME:
Diode: transil; 600W; 36V; 12A; unidirectional; DO15; TransZorb®
Win Source:
TVS DIODE 30.8VWM 49.9VC DO204AC
电容 200 pF
击穿电压 36 V
正向电压 5 V
耗散功率 600 W
钳位电压 49.9 V
最大反向电压（Vrrm） 36V
测试电流 1 mA
最大反向击穿电压 34.2V-37.8V
脉冲峰值功率 600 W
最小反向击穿电压 34.2 V
工作温度Max 175 ℃
工作温度Min -55 ℃
工作结温 -55℃ ~ 175℃
安装方式 Through Hole
引脚数 2
封装 DO-204AC
长度 7.6 mm
封装 DO-204AC
工作温度 -55℃ ~ 175℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 4000
RoHS标准
含铅标准 Lead Free
