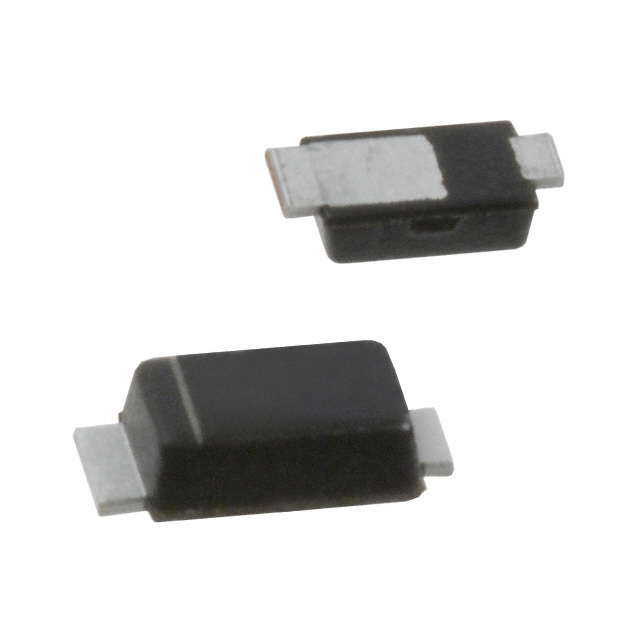

PD3S120L 系列 20 V 1 A 表面贴装 肖特基 势垒 整流器 -PowerDI-323
肖特基 1A 表面贴装型 PowerDI™ 323
得捷:
DIODE SCHOTTKY 20V 1A PWRDI323
立创商城:
20V 1A 420mV@1A
贸泽:
Schottky Diodes & Rectifiers 1A 20V Low VF
艾睿:
Switch from an AC voltage to a DC voltage using a Schottky diode PD3S120L-7 rectifier from Diodes Zetex. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. It is made in a single configuration. Its peak non-repetitive surge current is 33 A, while its maximum continuous forward current is 1 A. This rectifier has an operating temperature range of -65 °C to 125 °C.
Allied Electronics:
1A 20V Schottky Rectifier PowerDI323
安富利:
Diode Schottky 20V 1A 2-Pin PowerDI 323 T/R
Chip1Stop:
Diode Schottky 20V 1A 2-Pin PowerDI 323 T/R
Verical:
Diode Schottky 20V 1A Automotive 2-Pin PowerDI 323 T/R
Win Source:
DIODE SCHOTTKY 20V 1A POWERDI323
正向电压 0.42 V
热阻 6℃/W RθJL
反向恢复时间 5 ns
正向电流 1 A
最大正向浪涌电流(Ifsm) 33 A
正向电压Max 420mV @1A
正向电流Max 1 A
工作温度Max 125 ℃
工作温度Min -65 ℃
安装方式 Surface Mount
引脚数 2
封装 POWERDI-323
长度 1.9 mm
宽度 1.25 mm
高度 0.65 mm
封装 POWERDI-323
工作温度 -65℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
