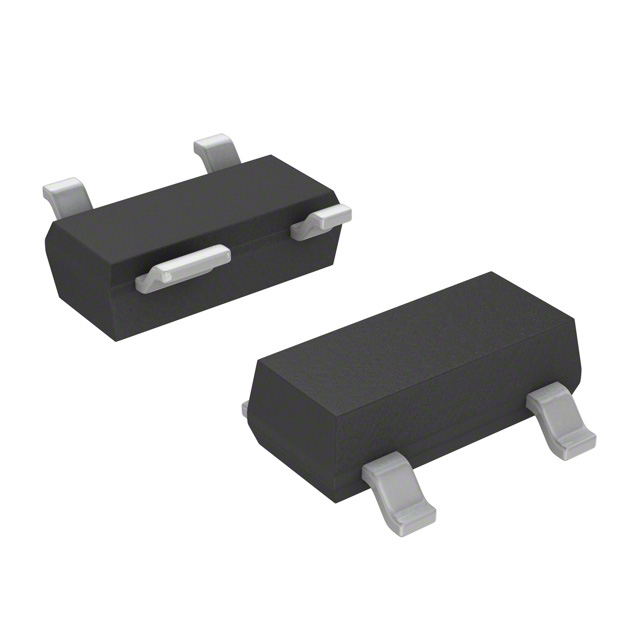

LITTELFUSE SR05-02CTG 二极管, 静电保护, 5V, 25A, SOT-143
Even low voltage discharges can cause damage to electronic components so get this diode array ESD protection device from for added protection. This ESD diode has a maximum ESD protection device voltage of ±30@Air Gap/±30@Contact Disc kV. This device"s maximum clamping voltage is 18 V. This ESD diode has an operating temperature range of -40 °C to 125 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. Its capacitance value is 10 pF. It is made in a dual configuration.
工作电压 5 V
电容 10 pF
针脚数 4
耗散功率 450 W
钳位电压 18 V
脉冲峰值功率 450 W
最小反向击穿电压 6 V
工作温度Max 125 ℃
工作温度Min -40 ℃
安装方式 Surface Mount
引脚数 4
封装 SOT-143
高度 1.22 mm
封装 SOT-143
工作温度 -40℃ ~ 125℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 以太网
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2014/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SR05-02CTG Littelfuse 力特 | 当前型号 | 当前型号 |
SR05.TCT Semtech Corporation | 功能相似 | SR05-02CTG和SR05.TCT的区别 |
