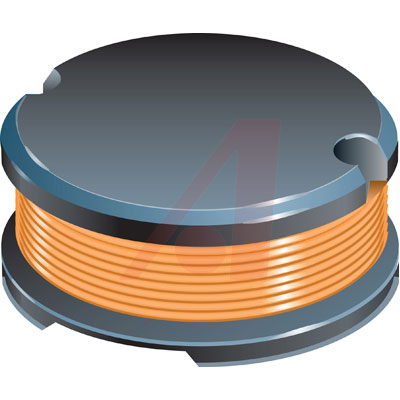

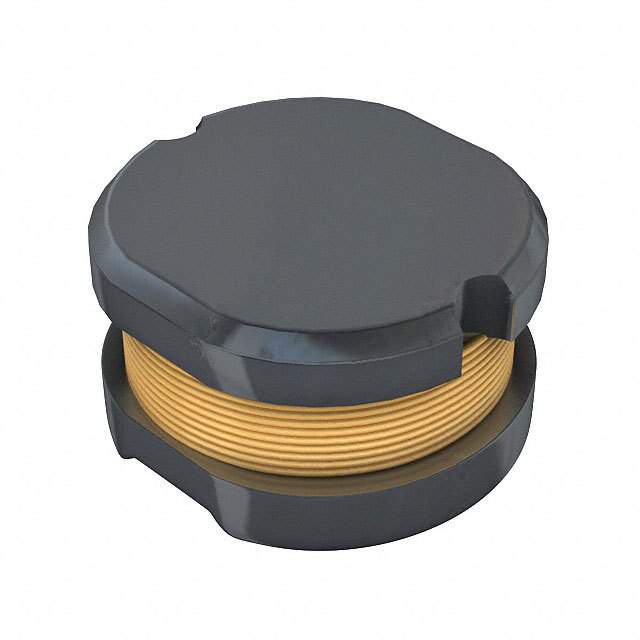

BOURNS SDR0302-1R0ML 表面贴装功率电感器, SDR0302系列, 1 µH, ± 20%, 非屏蔽, 0.06 ohm, 2.1 A
SDR0302 系列线绕扼流圈
Bourns SDR0302 系列贴片式功率器为薄型,仅 2.5mm。 应用包括直流/直流转换器和电源的输入/输出,适用于:便携式通信设备;摄像机;液晶电视;汽车收音机
得捷:
FIXED IND 1UH 2.1A 60 MOHM SMD
立创商城:
1uH ±20% 2.1A 60mΩ
欧时:
Bourns SDR0302 系列 铁氧体芯材 1 μH 绕线贴片电感器 SDR0302-1R0ML, ±20%容差, 2.7A Idc Q:20
e络盟:
功率电感SMD, 1 µH, 2.1 A, 非屏蔽, 2.7 A, SDR0302系列, 3mm x 2.8mm x 2.5mm
艾睿:
This power SDR0302-1R0ML surface mount inductor from Bourns is available in all standard chip sizes in multilayer thick film and thin film deposition and wire wound styles. This SMD inductor has an operating temperature range of -40 °C to 125 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. Its test frequency is 1K Hz, while its minimum self-resonant frequency is 125M Hz. This device utilizes wirewound technology. It has an inductance of 1u H. This product is 3.3 mm long, 2.8 mm tall and 3.1 mm deep. It has a tolerance of 20%. This SMD inductor has a maximum DC current of 2.1 A with a maximum resistance of 60m Ohm.
Allied Electronics:
Inductor; Power; Non-Shielded; Wirewound; 1uH; 20%; 2.1A
安富利:
Ind Power Wirewound 1uH 20% 1KHz 20Q-Factor Ferrite 2.1A T/R
Verical:
Inductor Power Unshielded Wirewound 1uH 20% 100KHz 20Q-Factor Ferrite 2.1A 0.06Ohm DCR Automotive T/R
Newark:
# BOURNS SDR0302-1R0ML Surface Mount Power Inductor, SDR0302 Series, 1 µH, 2.1 A, 2.7 A, Unshielded, 0.06 ohm
MASTER:
Inductor Power Wirewound 1uH 20% 100KHz 20Q-Factor Ferrite 2.1A 60mOhm DCR Automotive T/R
Online Components:
Inductor Power Wirewound 1uH 20% 100KHz 20Q-Factor Ferrite 2.1A 60mOhm DCR Automotive T/R
Electro Sonic:
Inductor Power Wirewound 1uH 20% 100KHz 20Q-Factor Ferrite 2.1A 60mOhm DCR Automotive T/R
额定电流 2.1 A
容差 ±20 %
电感 1 µH
自谐频率 125 MHz
Q值 20.0
电感公差 ±20 %
测试频率 1 kHz
电阻DC) ≤60 mΩ
工作温度Max 125 ℃
工作温度Min -40 ℃
电阻DC Max 0.06 Ω
安装方式 Surface Mount
引脚数 2
封装 0302
长度 3 mm
宽度 2.8 mm
高度 2.5 mm
封装 0302
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
HTS代码 8504508000
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SDR0302-1R0ML Bourns J.W. Miller 伯恩斯 | 当前型号 | 当前型号 |
ME3220-102MLB 线艺 | 功能相似 | SDR0302-1R0ML和ME3220-102MLB的区别 |
SDR0302-1R0M 伯恩斯 | 功能相似 | SDR0302-1R0ML和SDR0302-1R0M的区别 |
