基本型32位MCU
ARM® Cortex®-M3 series IC 32-位 36MHz 64KB(64K x 8) 闪存 36-VFQFPN(6x6)
得捷:
IC MCU 32BIT 64KB FLASH 36VFQFPN
立创商城:
ARM Cortex-M3 36MHz 闪存:64K@x8bit RAM:10KB
艾睿:
In order to make your CPU more versatile use this fantastic STM32F101T8U6 microcontroller from STMicroelectronics. This microcontroller has an operating temperature range of -40 °C to 85 °C. It has a maximum clock speed of 36 MHz. Its ADC resolution is 12. Its flash program memory is 64KB. This is a 32 bit processor. This device is based on the ARM Cortex M3 core architecture. This device has a typical operating supply voltage of 2.5|3.3 V. Its minimum operating supply voltage of 2 V, while its maximum is 3.6 V.
Chip1Stop:
MCU 32-bit STM32F1 ARM Cortex M3 RISC 64KB Flash 2.5V/3.3V 36-Pin VFQFPN EP Tray
TME:
ARM microcontroller; Flash:64kB; 36MHz; SRAM:10kB; VFQFPN36
Verical:
MCU 32-bit ARM Cortex M3 RISC 64KB Flash 2.5V/3.3V 36-Pin VFQFPN EP Tray
力源芯城:
基本型32位MCU
Win Source:
ARM Cortex-M3 STM32 F1 Microcontroller IC 32-Bit 36MHz 64KB 64K x 8 FLASH 36-VFQFPN 6x6
DeviceMart:
MCU ARM 32BIT 64K FLASH 36VFQFPN
频率 36 MHz
电源电压DC 2.00V min
时钟频率 36 MHz
RAM大小 10K x 8
位数 32
耗散功率 1110 mW
FLASH内存容量 64 KB
模数转换数ADC 1
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 1110 mW
电源电压 2V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 2 V
安装方式 Surface Mount
引脚数 36

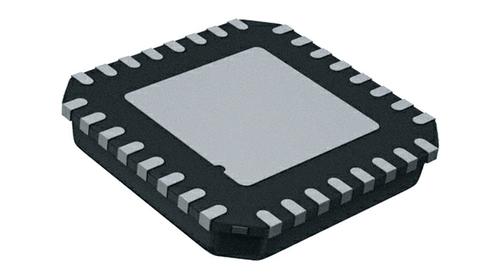

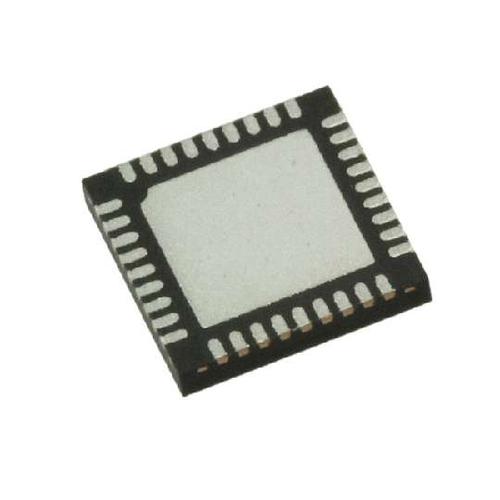

封装 VFQFPN-36
高度 0.88 mm
封装 VFQFPN-36
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tray
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
STM32F101T8U6 ST Microelectronics 意法半导体 | 当前型号 | 当前型号 |
STM32F101T8U6TR 意法半导体 | 功能相似 | STM32F101T8U6和STM32F101T8U6TR的区别 |
