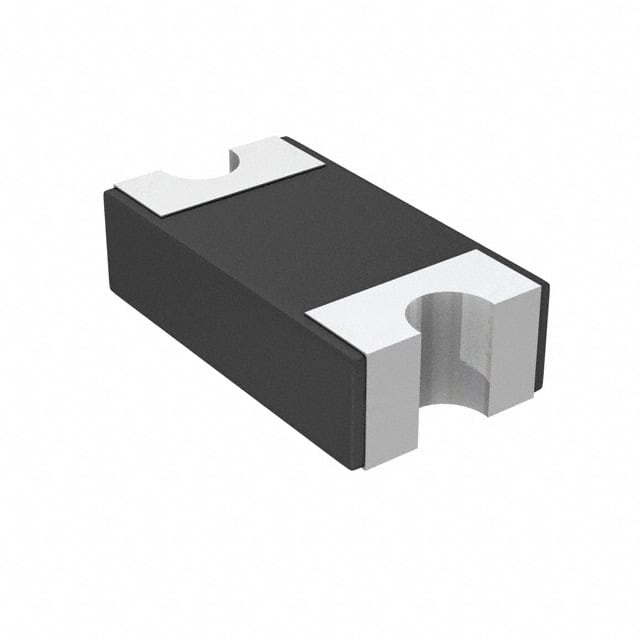

AVX SD1206S040S0R5 肖特基整流器, 单, 40 V, 500 mA, SOD-123, 2 引脚, 480 mV
The is a Schottky Barrier Rectifier Diode in FRP substrate with epoxy under-fill case and solderable lead-free tin-plated per MIL-STD-750 terminals. It offers unique lead-less chip which technology eliminates the lead frame wire bond to give the chip top-bottom symmetry for fewer mounting problems, better heat transfer and current handling capability compared to SOD devices. It is suitable for use in switch mode power supplies, high-frequency rectification and reverse bias protection applications.
针脚数 2
正向电压 0.48 V
热阻 28℃/W RθJL
正向电流 500 mA
最大正向浪涌电流(Ifsm) 15 A
正向电压Max 480 mV
正向电流Max 0.5 A
工作温度Max 125 ℃
工作温度Min -55 ℃
安装方式 Surface Mount
引脚数 2
封装 1206
封装 1206
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 Power Management, Industrial, Aerospace, Defence, Military
RoHS标准 RoHS Compliant
含铅标准 无铅
REACH SVHC标准 No SVHC
军工级 Yes
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
