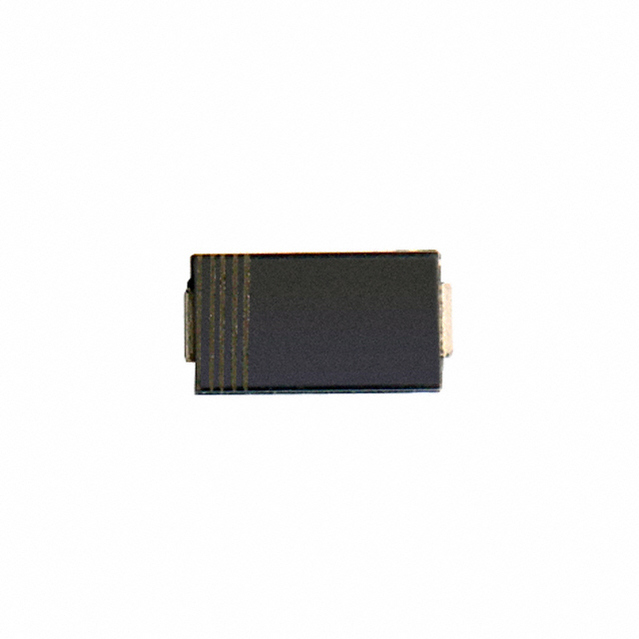

SMA 9.1V 1.5W
- 齐纳 ±5% 表面贴装型 DO-214AC(SMAJ)
得捷:
DIODE ZENER 9.1V 1.5W DO214AC
艾睿:
Check out this perfect SMAJ5924B-TP zener diode from Micro Commercial Components for operating in the reverse breakdown region. Its maximum leakage current is 5 μA. Its maximum power dissipation is 1500 mW. Its test current is 41.2 mA. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This zener device has a nominal voltage of 9.1 V and a voltage tolerance of 5%. It is made in a single configuration. This zener diode has a minimum operating temperature of -65 °C and a maximum of 150 °C.
Verical:
Diode Zener Single 9.1V 5% 1.5W 2-Pin SMA T/R
额定电压DC 9.10 V
容差 ±5 %
额定功率 1.50 W
正向电压 1.5V @200mA
耗散功率 1500 mW
测试电流 41.2 mA
稳压值 9.1 V
正向电压Max 1.5V @200mA
额定功率Max 1.5 W
工作温度Max 150 ℃
工作温度Min -65 ℃
安装方式 Surface Mount
引脚数 2
封装 DO-214AC
长度 4.6 mm
宽度 2.9 mm
高度 2.44 mm
封装 DO-214AC
工作温度 150 ℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SMAJ5924B-TP Micro Commercial Components 美微科 | 当前型号 | 当前型号 |
SMAZ9V1-13-F 美台 | 功能相似 | SMAJ5924B-TP和SMAZ9V1-13-F的区别 |
SML4739A-E3/61 威世 | 功能相似 | SMAJ5924B-TP和SML4739A-E3/61的区别 |
