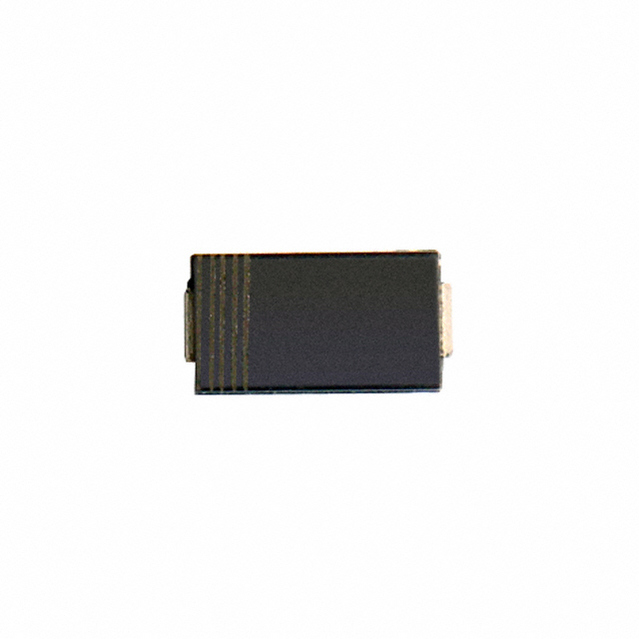

SMAJ5931B-TP

SMA 18V 1.5W

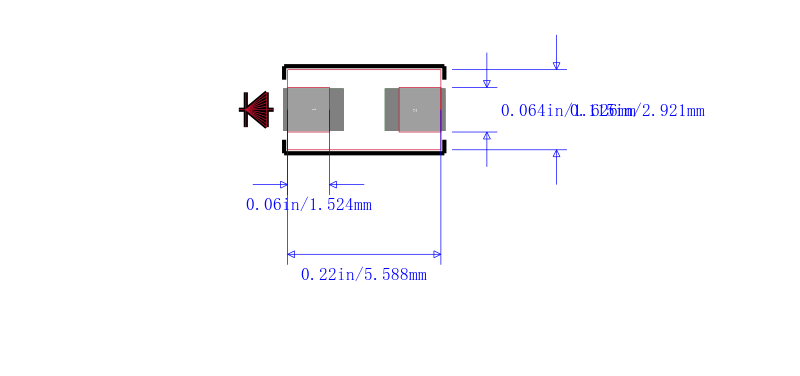

- 齐纳 ±5% 表面贴装型 DO-214AC（SMA）

得捷:
DIODE ZENER 18V 1.5W DO214AC

立创商城:
18V ±5% 1.5W

艾睿:
Check out this perfect SMAJ5931B-TP zener diode from Micro Commercial Components for operating in the reverse breakdown region. Its test current is 20.8 mA. Its maximum leakage current is 1 μA. Its maximum power dissipation is 1500 mW. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This zener device has a nominal voltage of 18 V and a voltage tolerance of 5%. This zener diode has an operating temperature range of -65 °C to 150 °C. It is made in a single configuration.

Chip1Stop:
Diode Zener Single 18V 5% 1.5W 2-Pin SMA T/R

Verical:
Diode Zener Single 18V 5% 1500mW 2-Pin SMA T/R
