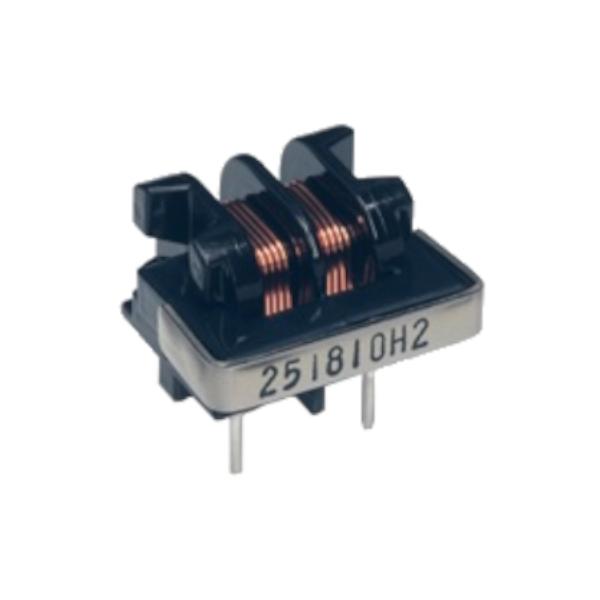

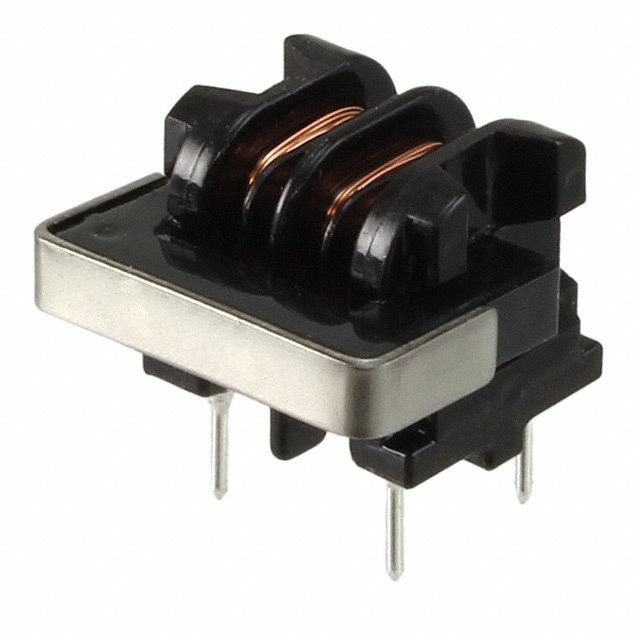

滤波器, 线性, 共模, 交流, 6 mH, SU 9HF系列
The SU 9HF series AC Line Filter suitable for consumer electronics and common mode choke applications.
- .
- Wide variety of sizes and specifications
- .
- Inductances up to 10mH
- .
- Rated currents up to 0.7A
- .
- DC Resistances as low as 0.44R
Avoid storage in high temperature, high humidity environment, atmosphere containing toxic gases or acid and near strong magnetic field.
Use within 6 months. If the product is used after a storage period of 6 months or longer, confirm its solderability before use.
额定电压AC 250 V
额定电流 300 mA
电感 6 mH
测试频率 1 kHz
电阻DC） 2 Ω
额定电流Max 300 mA
工作温度Max 120 ℃
工作温度Min -25 ℃
额定电压 250 VAC
电阻DC Max 2 Ω
安装方式 Through Hole
引脚数 4
封装 Vertical, 4 PC Pin
长度 17 mm
宽度 15.5 mm
高度 12 mm
封装 Vertical, 4 PC Pin
工作温度 -25℃ ~ 120℃
产品生命周期 Active
包装方式 Bulk
制造应用 工业, Consumer Electronics, Industrial, 消费电子产品
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
