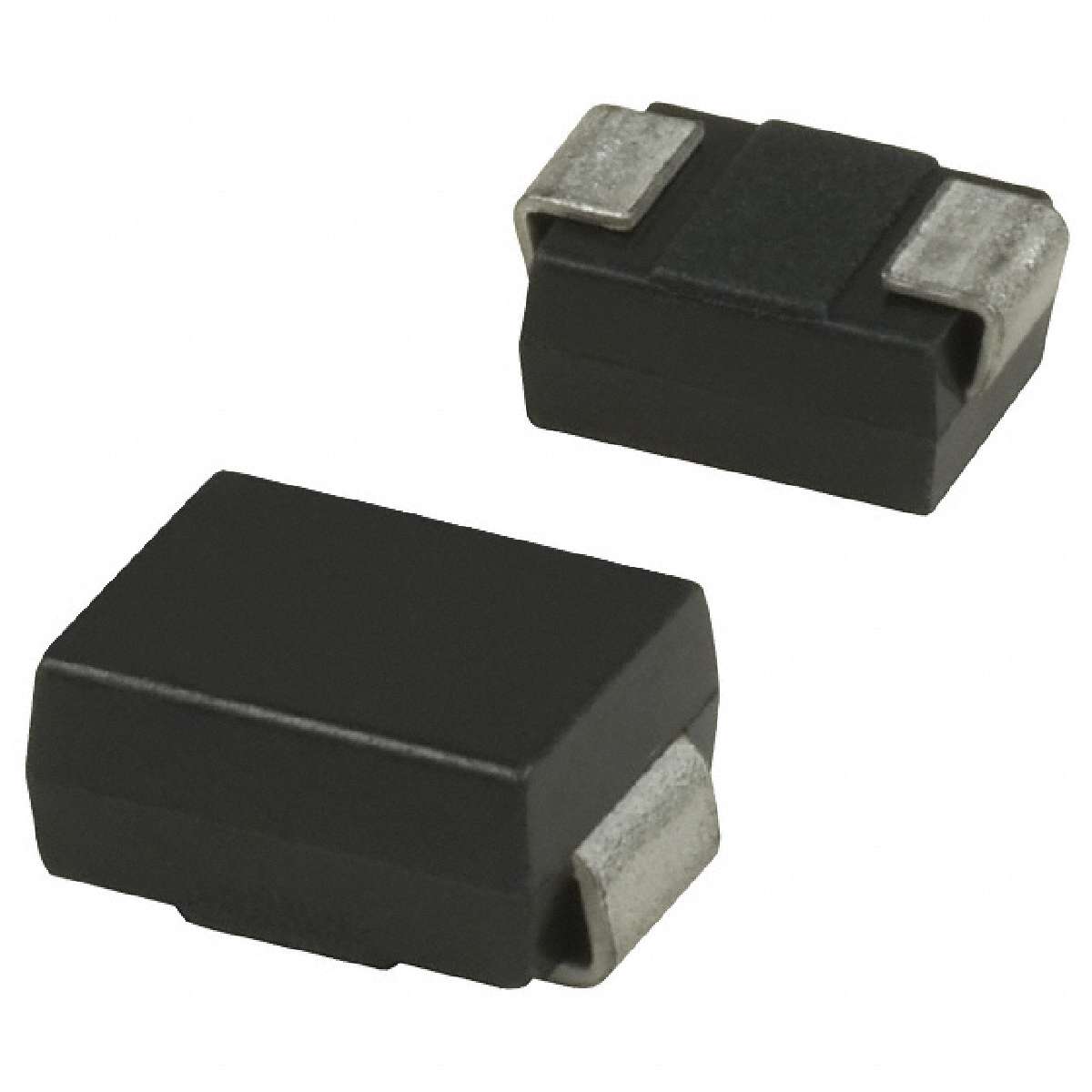

FAIRCHILD SEMICONDUCTOR S320 肖特基整流器, 单, 200 V, 3 A, DO-214AA, 2 引脚, 900 mV
The is a high-efficiency low power loss general-propose Schottky rectifier suitable for use in free-wheeling, secondary rectification and reverse polarity protection applications. The clip-bonded leg structure provides high thermal performance and low electrical resistance.
针脚数 2
正向电压 900mV @3A
热阻 20℃/W RθJL
反向恢复时间 30 ns
正向电流 3 A
最大正向浪涌电流(Ifsm) 80 A
正向电压Max 900 mV
正向电流Max 3 A
工作温度Max 150 ℃
工作温度Min -65 ℃
工作结温 -65℃ ~ 150℃
安装方式 Surface Mount
引脚数 2
封装 DO-214AA
长度 4.75 mm
宽度 3.95 mm
高度 2.45 mm
封装 DO-214AA
工作温度 -65℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
