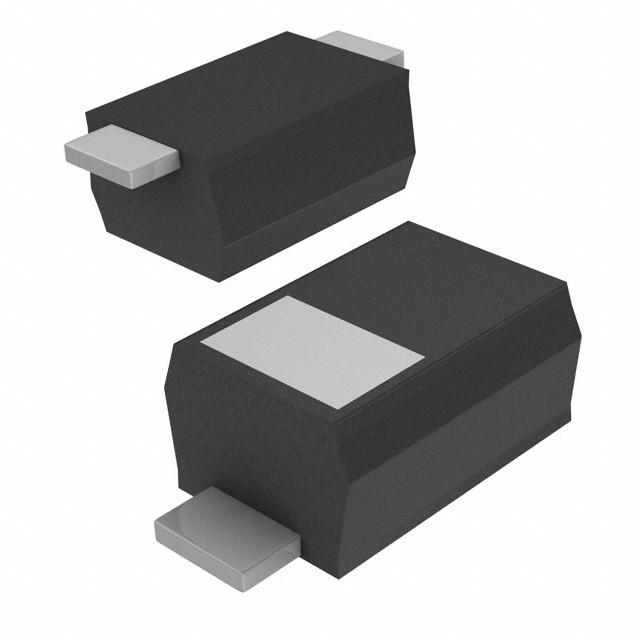

SMF160A-TP

ESD 抑制器/TVS 二极管 259V 200W 0.7A

Features

Stand-off Voltage 5-170 Volts

Uni and bi-directional type available suffix"C"means bi-directional

Surface Mount

Low Clamping Voltage

200 Watt Peak Power Dissipation

Small, High Thermal Efficiency

Moisture Sensitivity Level 1

立创商城:
单向 Vrwm:160V 200W

得捷:
TVS DIODE 160VWM 259VC SOD123FL

贸泽:
ESD 抑制器/TVS 二极管 259V 200W 0.7A

艾睿:
Implement surge protection with this SMF160A-TP TVS diode from Micro Commercial Components. Its test current is 1 mA. This device&s;s maximum clamping voltage is 259 V and minimum breakdown voltage is 178 V. Its maximum leakage current is 1 μA. Its peak pulse power dissipation is 200 W. This TVS diode has a minimum operating temperature of -65 °C and a maximum of 175 °C.

富昌:
SMF160A Series 178 V 700 mA 200 W Transient Voltage Suppressor - SOD-123FL

Chip1Stop:
ESD Suppressor TVS 16KV 2-Pin SOD-123FL T/R

Verical:
Diode TVS Single Uni-Dir 160V 200W 2-Pin SOD-123FL T/R
