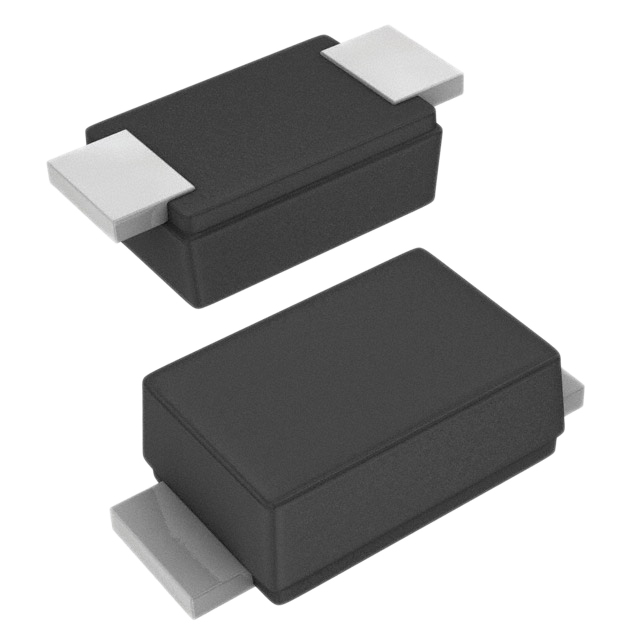

SMF 系列 200 W 45 V 单向 表面贴装 TVS 二极管 - SOD-123F
72.7V 夹子 2.8A Ipp TVS - 表面贴装型 SOD-123F
得捷:
TVS DIODE 45VWM 72.7VC SOD123F
立创商城:
单向 Vrwm:45V 200W
贸泽:
ESD 抑制器/TVS 二极管 200W 45V 5% Uni-directional
艾睿:
Surges can be a costly problem, avoid the pain and suffering by implementing this SMF45A TVS diode from Littelfuse. Its peak pulse power dissipation is 200 W. Its test current is 1 mA. Its maximum leakage current is 1 μA. This device&s;s maximum clamping voltage is 72.7 V and minimum breakdown voltage is 50 V. This TVS diode has a minimum operating temperature of -55 °C and a maximum of 150 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components.
Verical:
Diode TVS Single Uni-Dir 45V 200W 2-Pin SOD-123F T/R
Win Source:
TVS DIODE 45VWM 72.7VC SOD123F
电容 25 pF
击穿电压 55.3 V
耗散功率 200 W
钳位电压 72.7 V
测试电流 1 mA
脉冲峰值功率 200 W
最小反向击穿电压 50 V
击穿电压 50 V
工作温度Max 150 ℃
工作温度Min -65 ℃
工作结温 -65℃ ~ 150℃
安装方式 Surface Mount
引脚数 2
封装 SOD-123-2
封装 SOD-123-2
工作温度 -55℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SMF45A Littelfuse 力特 | 当前型号 | 当前型号 |
SMF45A-T13 力特 | 类似代替 | SMF45A和SMF45A-T13的区别 |
SMF45AT1G 安森美 | 功能相似 | SMF45A和SMF45AT1G的区别 |
