225mW,MMBZ52 和 SZMMBZ52 系列,On Semiconductor### Zener Diodes, ON Semiconductor
齐纳 225mW,MMBZ52 和 SZMMBZ52 系列,On Semiconductor
得捷:
TVS DIODE 22VWM 40VC SC70-3
欧时:

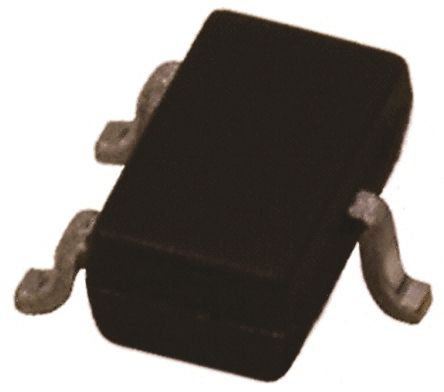

ON Semiconductor SZMMBZ27VAWT1G 2路 共阳极 齐纳二极管, 27V 40 W, 3引脚 SOT-323 SC-70封装
贸泽:
ESD 抑制器/TVS 二极管 ZEN DUAL .225 27V
艾睿:
Are you a designer worried about electrostatic discharge? Do not risk it, add this tvs SZMMBZ27VAWT1G ESD protection device from ON Semiconductor. This device&s;s maximum clamping voltage is 40 V. This ESD diode has a maximum ESD protection device voltage of 16@HBM/0.4@MM kV. This ESD diode has an operating temperature range of -55 °C to 150 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. It is made in a dual common anode|single configuration.
Allied Electronics:
SZMMBZ27VAWT1G Dual Zener Diode, CommonAnode, 27V 40 W SMT 3-Pin SC-70
安富利:
ESD Suppressor TVS 16KV 3-Pin SC-70 T/R
Chip1Stop:
ESD Suppressor TVS 16kV Automotive 3-Pin SC-70 T/R
Win Source:
TVS DIODE 22VWM 40VC SC70-3 / 40V Clamp 1A Ipp Tvs Diode Surface Mount SC-70-3 SOT323
工作电压 22 V
击穿电压 27 V
钳位电压 40 V
测试电流 1 mA
稳压值 27 V
脉冲峰值功率 40 W
最小反向击穿电压 25.65 V
工作温度Max 150 ℃
工作温度Min -55 ℃
耗散功率Max 40 W
安装方式 Surface Mount
引脚数 3
封装 SC-70-3
长度 2.2 mm
宽度 1.35 mm
高度 0.9 mm
封装 SC-70-3
工作温度 -55℃ ~ 150℃ TJ
温度系数 24.3 mV/℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 汽车级
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SZMMBZ27VAWT1G ON Semiconductor 安森美 | 当前型号 | 当前型号 |
MMBZ27VAWT1G 安森美 | 类似代替 | SZMMBZ27VAWT1G和MMBZ27VAWT1G的区别 |
SZMMBZ27VCLT1G 安森美 | 功能相似 | SZMMBZ27VAWT1G和SZMMBZ27VCLT1G的区别 |
SZMMBZ27VALT1G 安森美 | 功能相似 | SZMMBZ27VAWT1G和SZMMBZ27VALT1G的区别 |
