SDP86xx Series Optoschmitt Detectors

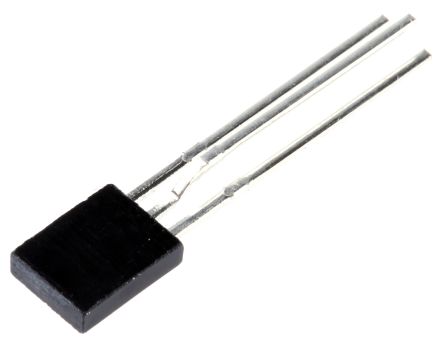

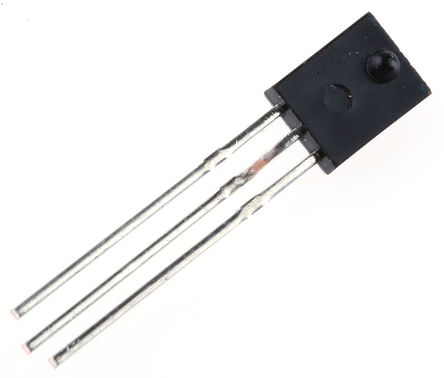

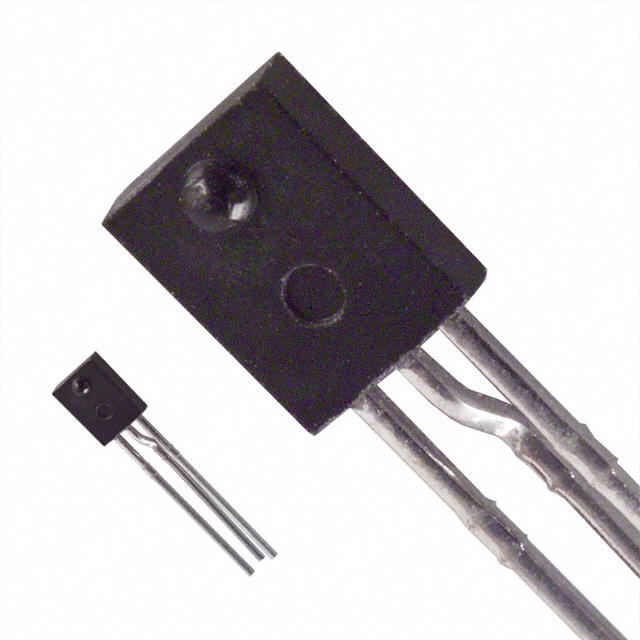

The SDP86xx series, from , are a family of optoschmitt detectors. They are in side-looking SL through-hole packages. This package minimises the effect of surrounding visible light. These single chip optoschmitt detectors consist of a photodiode, amplifier, voltage regulator, schmitt trigger and NPN transistor.
Features of the SDP86xx optoschmitt detectors:
Side looking SL black package
Three lead configurations
Acceptance angle: 55°
Wide sensitivity ranges
### 红外线光电二极管，Honeywell
供电电流 15 mA
通道数 1
波长 935 nm
时钟频率 100 kHz
耗散功率 100 mW
上升时间 60 ns
下降时间 15 ns
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 12.0 VDC
安装方式 Through Hole
引脚数 3
封装 Radial, 3 Lead, Side View
长度 4.45 mm
宽度 2.28 mm
高度 5.72 mm
封装 Radial, 3 Lead, Side View
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
