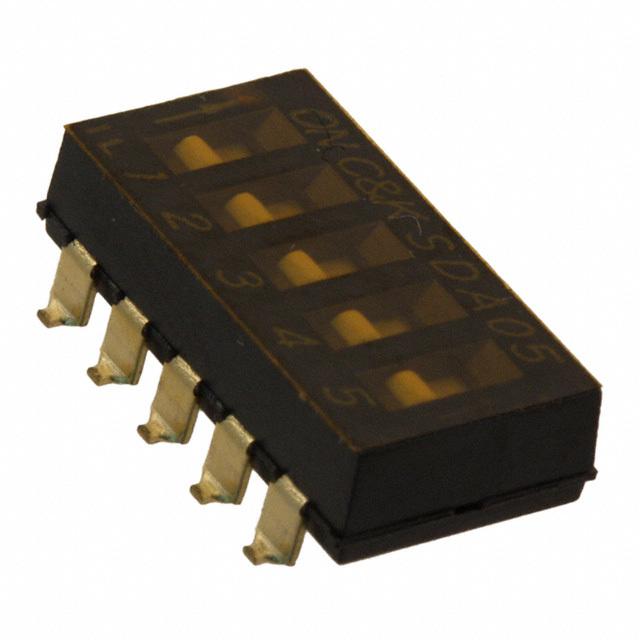

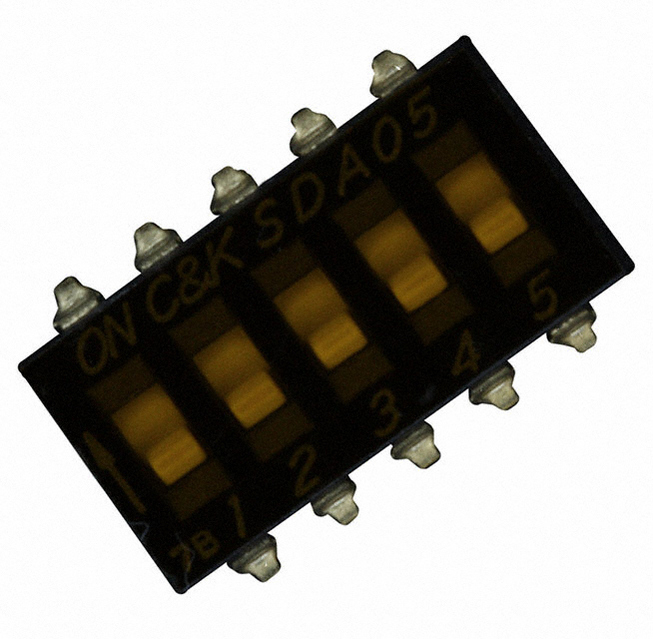

SDA 系列 单刀单掷 5 位置 鸥翼型 表面贴装 薄型 DIP 开关
DIP SPST 位置 表面贴装型 滑动式(标准) 触动器 25mA 24VDC
立创商城:
SDA05H0SB
得捷:
SWITCH SLIDE DIP SPST 25MA 24V
贸泽:
DIP 开关/ SIP 开关 FLUSH ACT 5 POS
艾睿:
By acting as a series of switches, the SDA05H0SB dual in-line package switch from C&a;K Components is the ideal component for use on a printed circuit board. This device has a maximum current rating of 0.1 A @ 5VDC. It has a SPST configuration. This DIP switch has a minimum operating temperature of -40 °C and a maximum of 85 °C. The SDA05H0SB DIP switch has a gull wing termination style. The maximum DC voltage rating is 24 VDC. This product&s;s terminal pitch is 2.54 mm. This product is 14.68 mm long, 4.45 mm tall and 9.3 mm deep.
安富利:
Switch DIP OFF ON SPST 5 Recessed Slide 0.1A 24VDC Gull Wing 1000Cycle 2.54mm SMD Tube
Chip1Stop:
Switch DIP OFF ON SPST 5 Flush Slide 0.1A 24VDC Gull Wing 1000Cycles 2.54mm SMD Tube
Verical:
Switch DIP OFF ON SPST 5 Flush Slide 0.1A 24VDC Gull Wing 1000Cycles 2.54mm SMD Tube
Newark:
# C & K COMPONENTS SDA05H0SB Slide Switch,STRAIGHT,SPST,Number Of Positions:5,SURFACE MOUNT Terminal
儒卓力:
**DIP 5P SMT TOP ACT.FLUSH Tape **
MASTER:
Low Profile DIP
Online Components:
Low Profile DIP
Electro Sonic:
Low Profile DIP
Win Source:
SWITCH SLIDE DIP SPST 25MA 24V / Dip Switch SPST 5 Position Surface Mount Slide Standard Actuator 25mA 24VDC
额定电压DC 24 V
额定电流 25 mA
触点类型 SPST
针脚数 5
额定电流Max 0.1A @5VDC
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压 24 VDC
额定电压DC Max 24 V
接触电阻Max 50 mΩ
安装方式 Surface Mount
封装 DIP-5
长度 14.68 mm
宽度 7.5 mm
高度 3.5 mm
封装 DIP-5
触点材质 Beryllium Copper
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536509065
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SDA05H0SB C&K Components | 当前型号 | 当前型号 |
SDA05H0SBR C&K Components | 完全替代 | SDA05H0SB和SDA05H0SBR的区别 |
SDA05H0SK C&K Components | 完全替代 | SDA05H0SB和SDA05H0SK的区别 |
ADF05ST04 泰科 | 功能相似 | SDA05H0SB和ADF05ST04的区别 |
