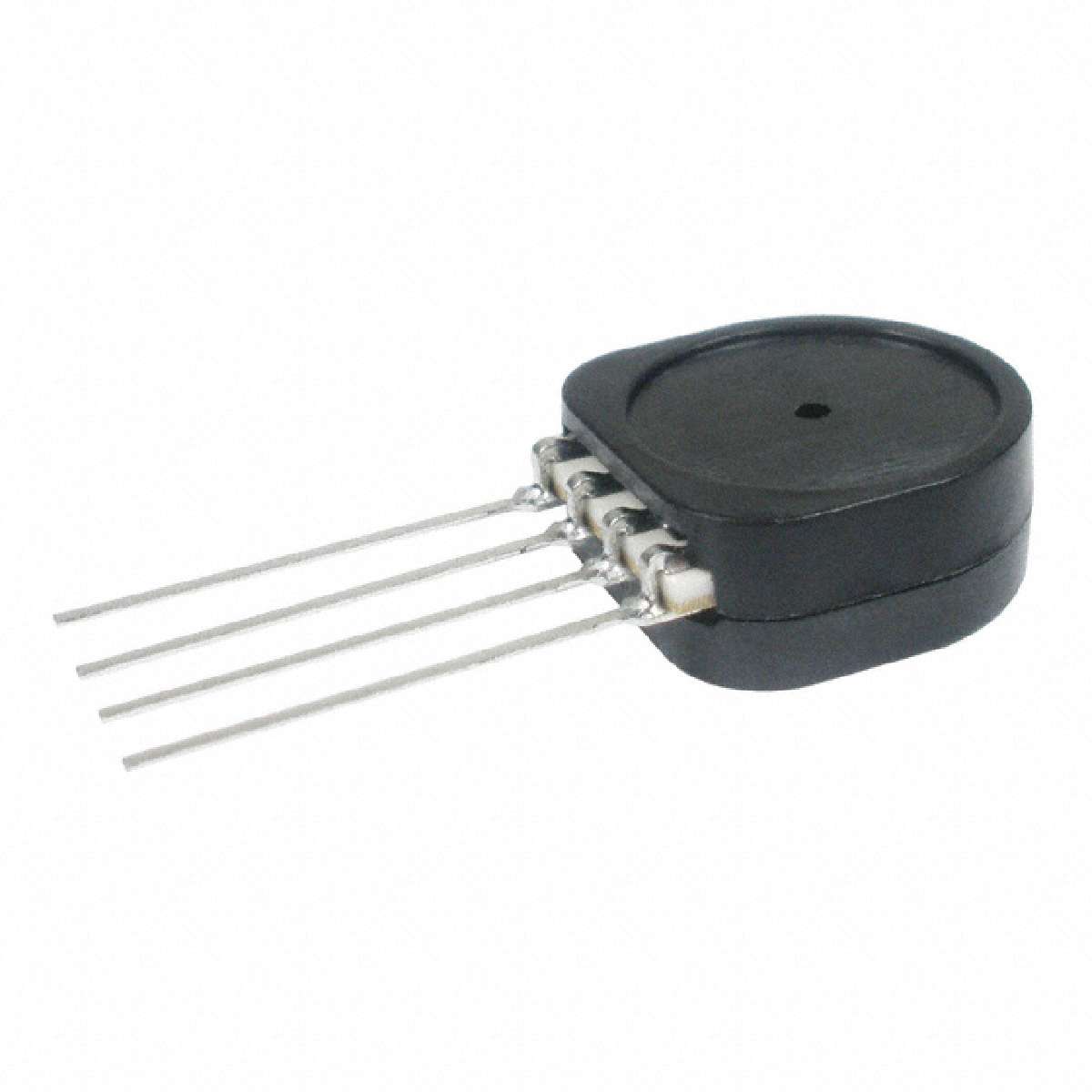

Pressure Sensor 0.5V to 4.5V 0psi to 15psi Gage 4Pin SIP
This board mount pressure sensor from is designed to test the specific pressure of a physical medium, usually a type of gas or liquid, as well as any changes in pressure from direct contact. It has a voltage of 0.5 to 4.5 V. This device has a minimum operating supply voltage of 4.75 V and a maximum of 5.25 V. This part has a minimum operating temperature of -40 °C and a maximum of 85 °C. Its operating pressure range is 0psi to 15psi, while its maximum overload pressure is 30psi. This part"s ESD protection device has a maximum ESD protection device voltage of 3Min @ HBM kV. It has a response time of 1 ms.
电源电压DC 5.00 V
额定电压DC 5.00 V
输出电压 0.5V ~ 4.5V
供电电流 2 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
精度 ±0.25 %
额定电压 5 V
电源电压 4.75V ~ 5.25V
电源电压Max 5.25 V
电源电压Min 4.75 V
安装方式 Through Hole
引脚数 4
封装 SIP-4
高度 13.11 mm
封装 SIP-4
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 9026204000
