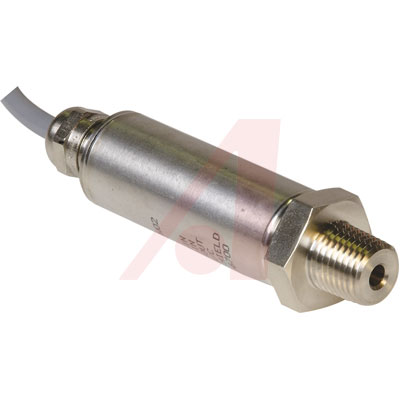

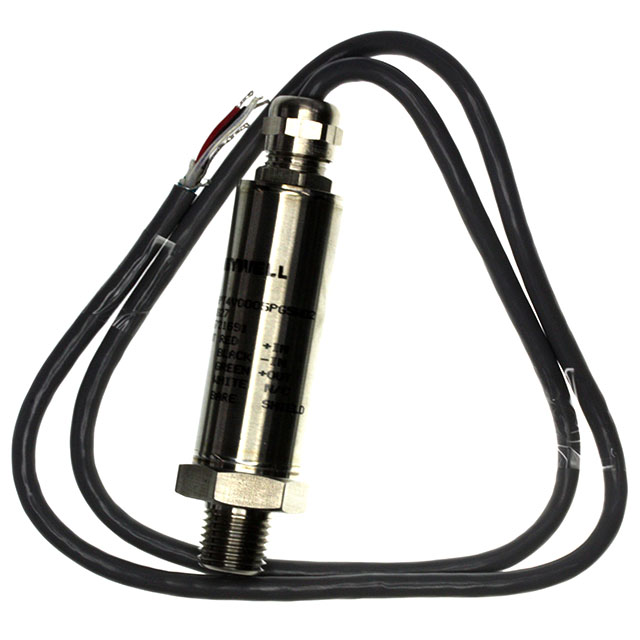

Pressure Sensor 1V to 5V 0psi to 5psi Gage 4Pin
"s SPT Series stainless steel pressure transducers are designed for pressure applications that involve measurement of hostile media in harsh environments and will accommodate any media that will not adversely attack 304 or 316 stainless steel wetted parts. The SPT Series is calibrated and compensated for three styles of* Reliable Semiconductor Technology
* Calibrated and Temperature Compensated
* Rugged, Stainless Steel Package
* NEMA 4 Design
* Absolute, Gage, Sealed Gage, Vacuum Gage Pressures
* 0 PSI to 3 PSI, 0 PSI to 5000 PSI **Typical Applications:**
* Industrial Automation and Flow Control
* Pressure Instrumentation
* Hydraulic Systems
* Process Control
电源电压DC 24.0 V
额定电压DC 24.0 V
输出电压 1V ~ 5V
供电电流 5 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
精度 ±0.25 %
额定电压 24 V
电源电压 12.5V ~ 24V
引脚数 4
封装 Cylinder
长度 25.64 mm
宽度 22.2 mm
高度 91.8 mm
封装 Cylinder
电缆长度 50.8 mm
工作温度 -40℃ ~ 85℃
产品生命周期 Active
RoHS标准 Non-Compliant
含铅标准 Contains Lead
ECCN代码 EAR99
HTS代码 9026204000
