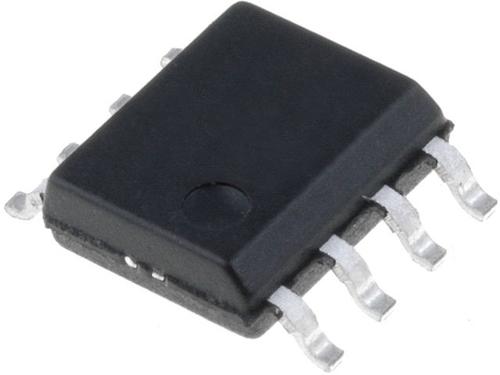

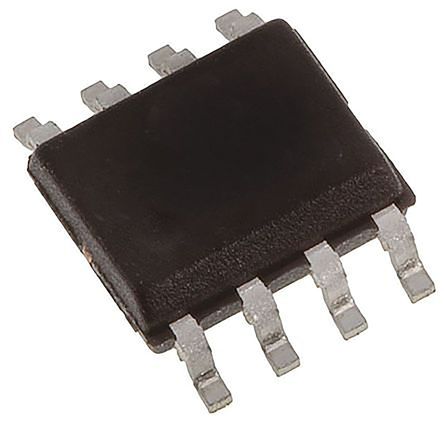

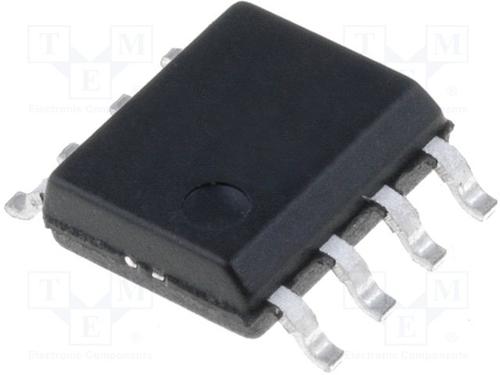

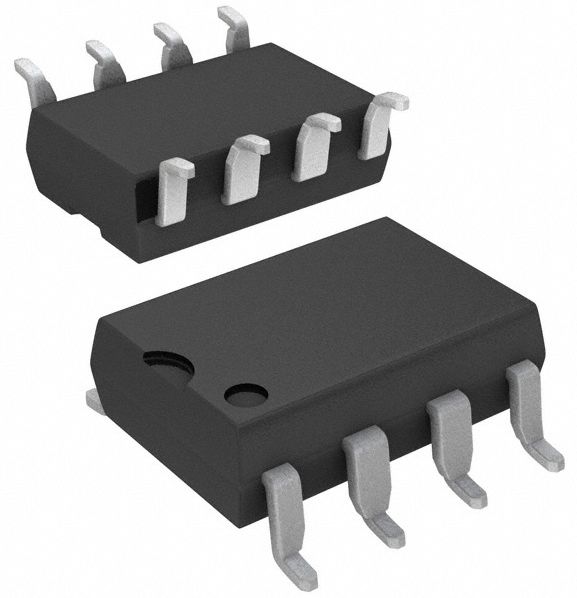

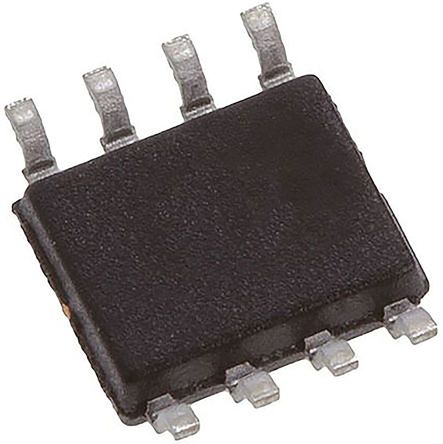

SLVU2.8-4.TBT

EPD TVS 二极管，用于 ESD 和闩锁保护，SLVU2.8 系列400 W 峰值脉冲功率 tp = 8/20μs 瞬时保护，用于高速数据线路至 IEC 61000-4-2 ESD ±15kV（空气），±8kV（触点） IEC 61000-4-4 EFT 40A 5/50ns IEC 61000-4-5（雷电）24A 8/20μs 低电容 低泄漏电流 低工作和钳位电压 ### 瞬态电压抑制器，Semtech

The is an EPD TVS Diode Array for ESD and latch-up protection. It is designed to protect low voltage, state-of-the-art CMOS semiconductors from transients caused by electrostatic discharge ESD, cable discharge events CDE, lightning and other induced voltage surges. The device is constructed using Semtech"s proprietary EPD process technology. The EPD process provides low standoff voltages with significant reductions in leakage currents and capacitance over silicon avalanche diode processes. It features an integrated low capacitance compensation diode that allows the device to be configured to protect one unidirectional line or when paired with a second SLVU2.8, two high-speed line pairs. The low capacitance design of the device means signal integrity is preserved in high-speed applications such as 10/100 Ethernet. The flow-thru design minimizes trace inductance and reduces voltage overshoot associated with ESD events.

.

400W Peak pulse power tp= 8/20µs

.

Transient protection for high-speed data lines to IEC 61000-4-2 ESD ±15kV air, ±8kV contact

.

Transient protection for high-speed data lines to IEC 61000-4-4 EFT 40A 5/50ns

.

Transient protection for high-speed data lines to IEC 61000-4-5 Lightning 24A 8/20µs

.

Protects two line pairs four lines

.

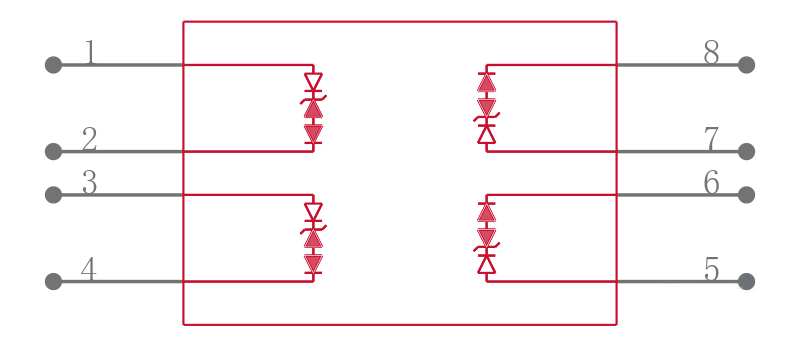

Comprehensive pin out for easy board layout

.

Low capacitance

.

Low leakage current

.

Low operating and clamping voltages

.

Solid-state EPD TVS process technology

.

-55 to 125°C Operating temperature range
