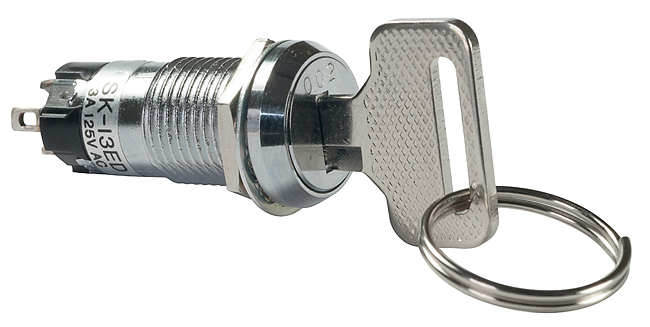

Switch Key Lock ON OFF ON SPDT 45° Flat Key 3A 125VAC Solder Lug 30000Cycles Panel Mount

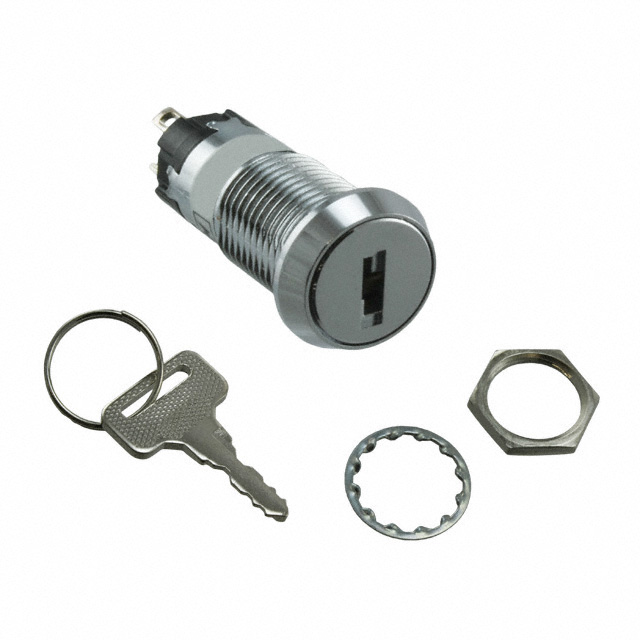

Single pole with 12 mm dia. bushing, silver contacts, UL Recognition, CSA Certification, short behind panel dimension and epoxy sealed solder lug terminals.Face and bezel have brushed chrome finish. 2 Keys of chromate-over-zinc alloy provided with each switch.
艾睿:
Switch Key Lock ON OFF ON SPDT 45
Allied Electronics:
MINIATURE KEYLOCK/PANEL MOUNT
Chip1Stop:
Switch Key Lock ON OFF ON SPDT 45 Flat Key 3A 125VAC Solder Lug 30000Cycles Panel Mount
Powell:
MINIATURE KEYLOCK/PANEL MOUNT
触点电镀 Silver
接触器类型 Key
额定电流 3.00 A
绝缘电阻 1.00 GΩ
方向 Vertical
触点类型 SPDT
针脚数 3
接触电阻 10.0 mΩ
触点额定电流 3.00 A
额定电流Max 3A @125VAC
工作温度Max 70 ℃
工作温度Min -25 ℃
额定电压AC Max 125 V
接触电阻Max 10 mΩ
安装方式 Panel, Solder Lug
长度 15 mm
宽度 15 mm
高度 32.7 mm
产品生命周期 Not Recommended for New Design
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
