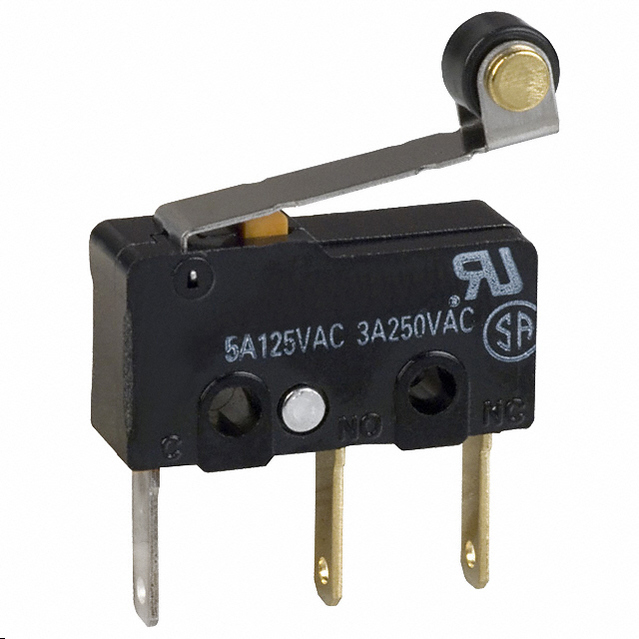

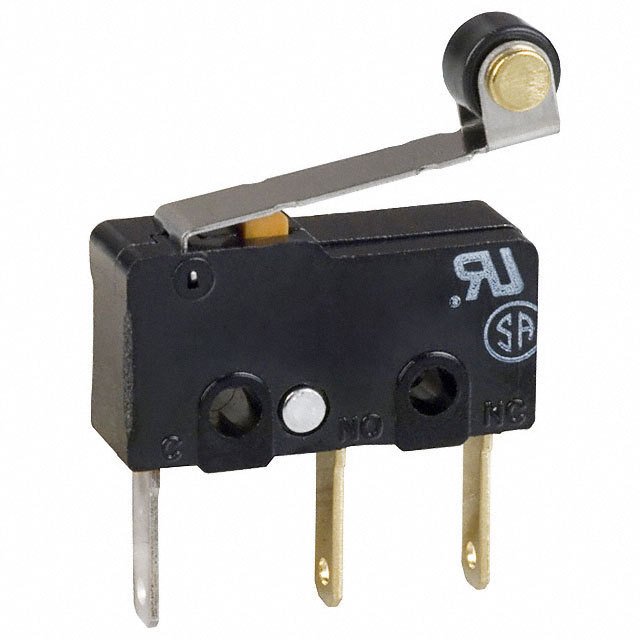

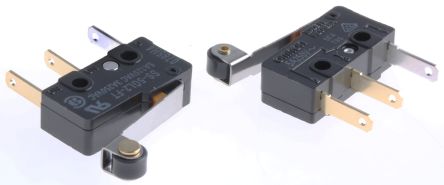

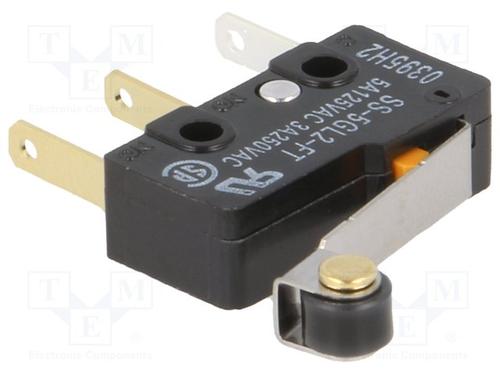

SS-5GL2-FT

OMRON ELECTRONIC COMPONENTS  SS-5GL2-FT  微动开关, 2076325系列, SPDT, 快速连接, 5 A, 125 VAC

SS 超微型基本 5 A

包含简单稳定的两个分离式弹簧，确保长工作寿命（3000 万次操作）

提供多种型号，操作力从低到高

提供焊接、快速连接端子 #110 和印刷电路板端子

欧时:
Omron SS-5GL2-FT 单刀双掷 - 常开/常闭 滚轮杠杆 微动开关, 5 A @ 125 V 交流

贸泽:
基本/快动开关 5A Switch SPDT Hinged Roller Tab

e络盟:
微动开关, 微型, 合页辊杆, SPDT, 快速连接, 5 A

艾睿:
If you&s;re looking for rapid switching to close your circuit use this SS-5GL2-FT snap-action switch from Omron. It has a SPDT configuration. This device has a maximum current rating of 5 A @ 125VAC 14VDC. This snap action switch has an operating temperature range of -25 °C to 85 °C. The SS-5GL2-FT snap action switch has a quick connect termination style. The maximum AC voltage rating is 125 VAC and the maximum DC voltage rating is 14 VDC. This product is 22.05 mm long, 29.9 mm tall and 6.4 mm deep.

安富利:
Switch Snap Action N.O./N.C. SPDT Hinge Roller Lever Quick Connect 5A 125VAC 14VDC 0.16N Screw Mount

Chip1Stop:
Switch Snap Action N.O./N.C. SPDT Hinge Roller Lever Quick Connect 5A 125VAC 14VDC 0.16N Screw Mount

TME:
Microswitch; with lever with roller; SPDT; 5A/250VAC; ON-ON

Newark:
# OMRON ELECTRONIC COMPONENTS  SS-5GL2-FT  Microswitch, 2076325 Series, SPDT, Hinge Roller Lever, Quick Connect, 5 A, 125 V

MASTER:
Switch Snap Action N.O./N.C. SPDT Hinge Roller Lever 5A 250VAC 0.16N Screw Mount Quick Connect

Electro Sonic:
Switch Snap Action N.O./N.C. SPDT Hinge Roller Lever 5A 250VAC 0.16N Screw Mount Quick Connect

Win Source:
SWITCH SNAP ACTION SPDT 5A 125V / Switch SPDT Chassis Mount
