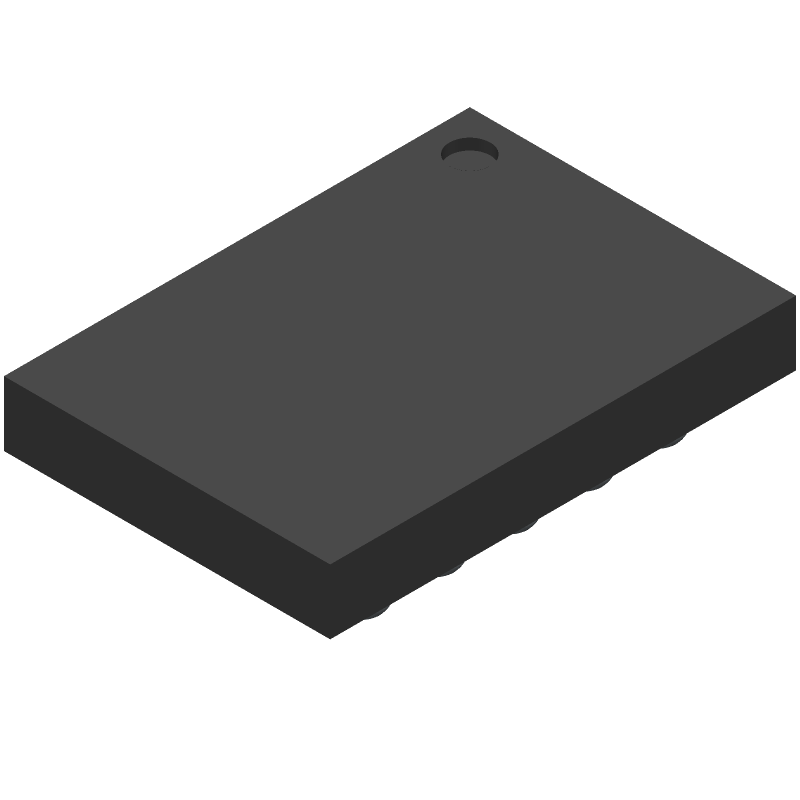

STMICROELECTRONICS STBB3JCCR 芯片, 直流/直流转换器, 带WLED驱动器, 2A, FLIPCHIP-20
The is a fixed frequency high efficiency buck-boost DC-DC Converter which provides output voltage from 1.2 to 5.5V starting from input voltage from 1.8 to 5.5V. Thanks to very low sensing voltage, only 100mV and very low RDSon of integrated power MOSFET, it achieves very high efficiency driving high brightness white LED in constant current mode. The device can operate with input voltages higher than, equal to or lower than the output voltage making the product suitable for cell lithium-Ion applications where the output voltage is within the battery voltage range. The MODE pin allows the selection between auto mode and forced PWM mode, taking advantage from either lower power consumption or best dynamic performance. The device also includes soft-start control, thermal shutdown and current limit.
电源电压DC 5.50 V
输出接口数 1
输出电压 1.2V ~ 5.5V
输出电流 2 A
针脚数 20
调节输出数 1
开关频率 2 MHz
输入电压Max 5.5 V
输入电压Min 1.8 V
输出电压Max 5.5 V
输出电压Min 1.2 V
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 5.5 V
输入电压 1.8V ~ 5.5V
安装方式 Surface Mount
引脚数 20
封装 Flip-Chip-20
封装 Flip-Chip-20
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 Portable Devices, Computers & Computer Peripherals, 计算机和计算机周边, 便携式器材
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
