双2线， 4线译码器/解复用器 DUAL 2-LINE TO 4-LINE DECODER/DEMULTIPLEXER
Use this from Texas Instruments to decode multiplexed or non-binary data. This decoder has an operating temperature range of -40 °C to 85 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This inverting device has a typical operating supply voltage of 1.8|2.5|3.3 V. Its minimum operating supply voltage of 1.65 V, while its maximum is 3.6 V.
电源电压DC 1.65V ~ 3.60V
输出接口数 4
触点类型 DP4T
电路数 2
位数 4
电压波节 3.30 V, 2.70 V, 2.50 V, 1.80 V
带宽 100 MHz
输出电流驱动 -1.00 mA
输入数 2
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 1.65V ~ 3.6V
安装方式 Surface Mount
引脚数 16

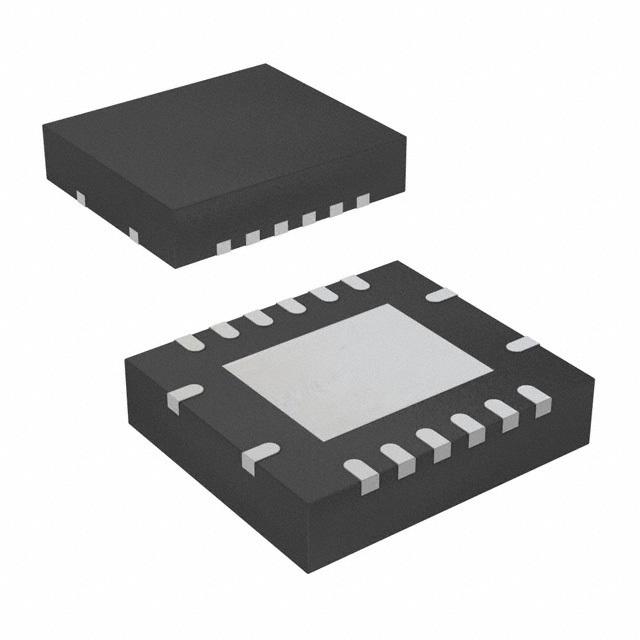

封装 VQFN-16
封装 VQFN-16
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SN74LVC139ARGYR TI 德州仪器 | 当前型号 | 当前型号 |
SN74AHC138RGYRG4 德州仪器 | 完全替代 | SN74LVC139ARGYR和SN74AHC138RGYRG4的区别 |
SN74LVC138ARGYR 德州仪器 | 类似代替 | SN74LVC139ARGYR和SN74LVC138ARGYR的区别 |
SN74AHC138RGYR 德州仪器 | 类似代替 | SN74LVC139ARGYR和SN74AHC138RGYR的区别 |
