SN74LV1T32DCKR概述
具有逻辑电平转换器的单电源 2 输入正或门 5-SC70 -40 to 125
Build any logic circuits you can think of with this logic gate by Texas Instruments. This gate has an operating temperature range of -40 °C to 125 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This device has a typical operating supply voltage of 1.8|2.5|3.3|5 V. Its minimum operating supply voltage of 1.6 V, while its maximum is 5.5 V.
SN74LV1T32DCKR中文资料参数规格
技术参数
电源电压DC 1.60V min
输出接口数 1
输出电流 8 mA
电路数 1
位数 1
输入数 2
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 1.6V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 1.6 V
封装参数
安装方式 Surface Mount
引脚数 5
封装 SC-70-5
外形尺寸
封装 SC-70-5
物理参数
工作温度 -40℃ ~ 125℃
其他
产品生命周期 Active
包装方式 Tape & Reel TR
符合标准
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
海关信息
ECCN代码 EAR99

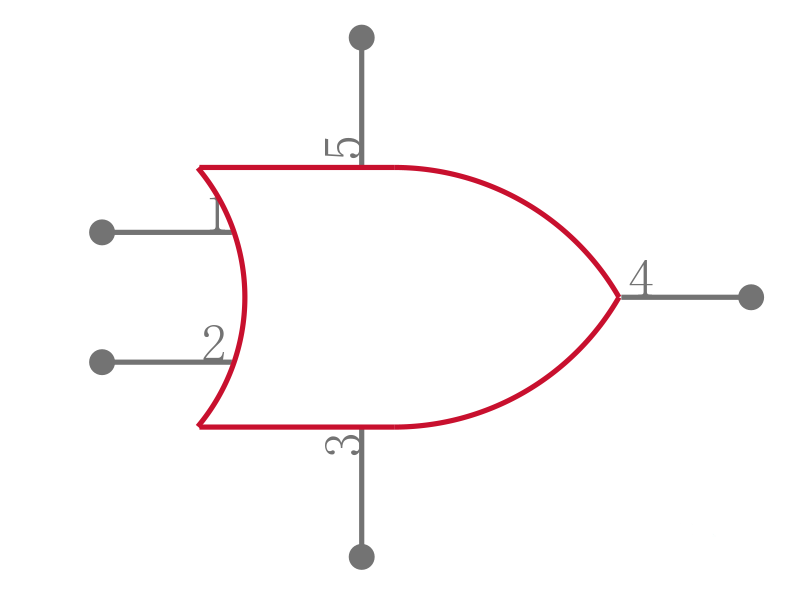

SN74LV1T32DCKR引脚图与封装图
