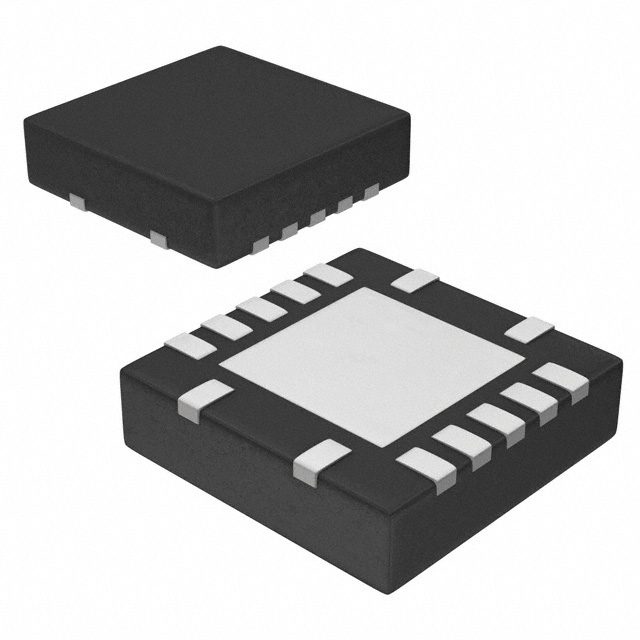

SN74LVC14ARGYRG4

六角施密特触发反相器 HEX SCHMITT-TRIGGER INVERTERS

DESCRIPON

The SN54LVC14A hex Schmitt-trigger inverter is designed for 2.7-V to 3.6-V VCC operation, and the SN74LVC14A hex Schmitt-trigger inverter is designed for 1.65-V to 3.6-V VCC operation.

Operate From 1.65 V to 3.6 V

Specified From –40°C to 85°C, –40°C to 125°C, and –55°C to 125°C

Inputs Accept Voltages to 5.5 V

Max tpdof 6.4 ns at 3.3 V

Typical VOLP Output Ground Bounce < 0.8 V at VCC = 3.3 V, TA= 25°C

Typical VOHVOutput VOHUndershoot> 2 V at VCC= 3.3 V, TA= 25°C

Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II

ESD Protection Exceeds JESD 22

– 2000-V Human-Body Model A114-A

– 200-V Machine Model A115-A

– 1000-V Charged-Device Model C101
