双逆变器缓冲/驱动器，具有漏极开路输出 DUAL INVERTER BUFFER/DRIVER WITH OPEN DRAIN OUTPUTS
This buffer and line driver from Texas Instruments is used to amplify an analog or digital signal by driving the input to the transmission line. With an open drain output, this is power management at its best. This line driver has an operating temperature range of -40 °C to 125 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. It has 2 channels per chip. This inverting device has a typical operating supply voltage of 1.8|2.5|3.3|5 V. Its minimum operating supply voltage of 1.65 V, while its maximum is 5.5 V.
电源电压DC 1.65V min
输出接口数 2
电路数 2
通道数 2
位数 2
传送延迟时间 2.90 ns
电压波节 1.80 V, 2.50 V, 3.30 V, 5.00 V
逻辑门个数 2
输入数 2
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 1.65V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 1.65 V
安装方式 Surface Mount
引脚数 6

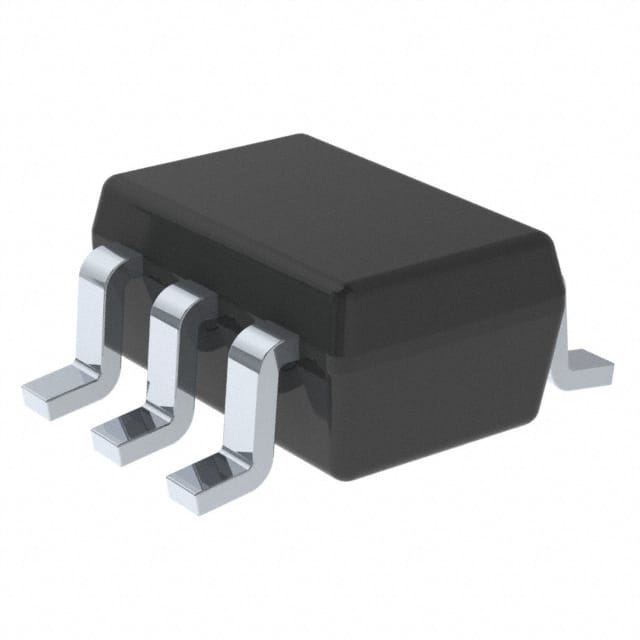

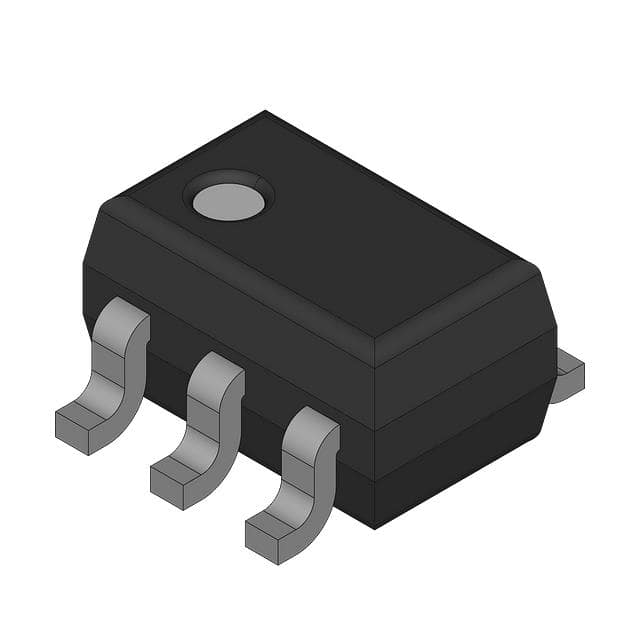

封装 SC-70-6
宽度 1.25 mm
高度 1 mm
封装 SC-70-6
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SN74LVC2G06QDCKRQ1 TI 德州仪器 | 当前型号 | 当前型号 |
SN74LVC2G04DCKT 德州仪器 | 类似代替 | SN74LVC2G06QDCKRQ1和SN74LVC2G04DCKT的区别 |
74LVC2G04GW,125 恩智浦 | 类似代替 | SN74LVC2G06QDCKRQ1和74LVC2G04GW,125的区别 |
SN74LVC2G04MDCKREP 德州仪器 | 类似代替 | SN74LVC2G06QDCKRQ1和SN74LVC2G04MDCKREP的区别 |
