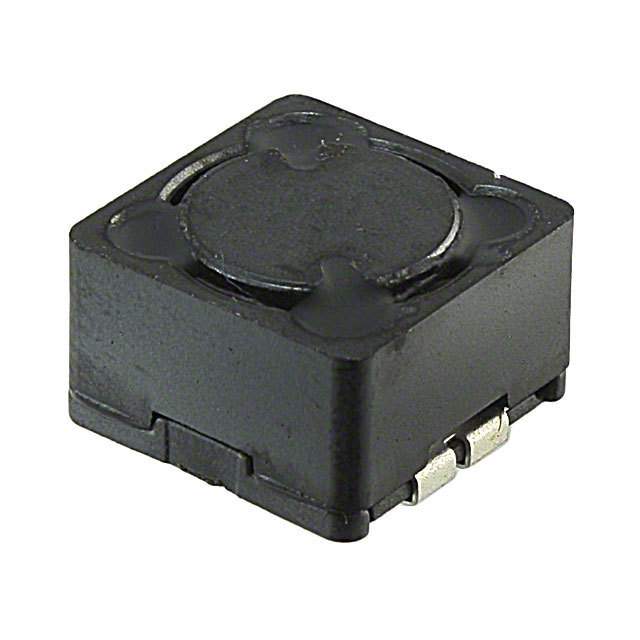

BOURNS SRR1208-561KL 表面贴装功率电感器, SRR1208系列, 560 µH, ± 10%, 屏蔽, 0.9 ohm, 650 mA
Features
■ Available in E6 series
■ Unit height of 8.5 mm
■ Current up to 7.5 A
■ RoHS compliantApplications
■ Input/output of DC/DC converters
■ Power supplies for:
• Portable communication equipment
• Camcorders
• LCD TVs
• Car radios
得捷:
FIXED IND 560UH 650MA 900MOHM SM
e络盟:
功率电感SMD, 560 µH, 650 mA, 屏蔽, 900 mA, SRR1208系列, 12.7mm x 12.7mm x 8.5mm
艾睿:
Does your electronic circuit design require filtering, power supplies, and other similar functions? Then this power SRR1208-561KL surface mount inductor from Bourns is perfect for you! This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 125 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. It has a tolerance of 10%. Its test frequency is 1K Hz, while its minimum self-resonant frequency is 1.4M Hz. This product is 13 mm long, 8.5 mm tall and 13 mm deep. It has an inductance of 560u H. This SMD inductor has a maximum DC current of 650m A with a maximum resistance of 900m Ohm. This device is made with wirewound technology.
安富利:
Ind Power Shielded Wirewound 560uH 10% 1KHz 14Q-Factor Ferrite 650mA T/R
Chip1Stop:
Ind Power Shielded Wirewound 560uH 10% 1KHz 14Q-Factor Ferrite 650mA T/R
Verical:
Inductor Power Shielded Wirewound 560uH 10% 1KHz 14Q-Factor Ferrite 650mA 900mOhm DCR T/R
Online Components:
Inductor Power Shielded Wirewound 560uH 10% 1KHz 14Q-Factor Ferrite 650mA 900mOhm DCR Automotive T/R
Electro Sonic:
Inductor Power Shielded Wirewound 560uH 10% 1KHz 14Q-Factor Ferrite 650mA 900mOhm DCR T/R
额定电流 650 mA
电感 560 µH
自谐频率 1.4 MHz
Q值 14.0
电感公差 ±10 %
测试频率 0.001 MHz
电阻DC) 0.9 Ω
工作温度Max 125 ℃
工作温度Min -40 ℃
电阻DC Max 0.9 Ω
引脚数 2
封装 12.7mm x 12.7mm x 8.5mm
长度 13 mm
宽度 13 mm
高度 8.5 mm
封装 12.7mm x 12.7mm x 8.5mm
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SRR1208-561KL Bourns J.W. Miller 伯恩斯 | 当前型号 | 当前型号 |
SRR1208-561K 伯恩斯 | 功能相似 | SRR1208-561KL和SRR1208-561K的区别 |
