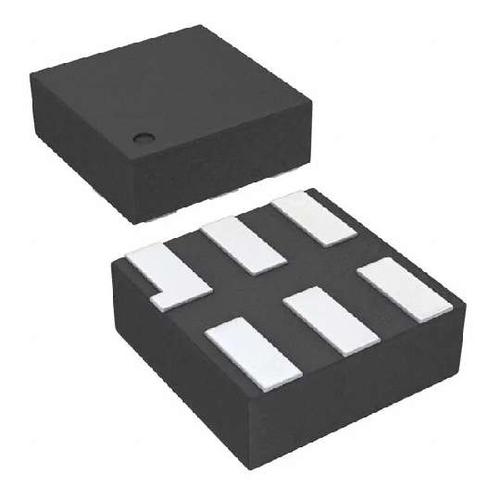

单路 2 输入正与非门 6-SON -40 to 125
Description
This single 2-input positive-NAND gate is designed for 1.65-V to 5.5-V VCC operation.
Features
• Available in the Ultra Small 0.64-mm2 Package DPW With 0.5-mm Pitch
• Supports 5-V VCC Operation
• Inputs Accept Voltages to 5.5 V
• Provides Down Translation to VCC
• Max tpd of 3.8 ns at 3.3 V
• Low Power Consumption, 10-μA Max ICC
• ±24-mA Output Drive at 3.3 V
• Ioff Supports Live Insertion, Partial-Power-Down Mode, and Back Drive Protection
• Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
• ESD Protection Exceeds JESD 22
– 2000-V Human-Body Model A114-A
– 1000-V Charged-Device Model C101
Applications
• AV Receiver
• Audio Dock: Portable
• Blu-ray Player and Home Theater
• Embedded PC
• MP3 Player/Recorder Portable Audio
• Personal Digital Assistant PDA
• Power: Telecom/Server AC/DC Supply: Single Controller: Analog and Digital
• Solid State Drive SSD: Client and Enterprise
• TV: LCD/Digital and High-Definition HDTV
• Tablet: Enterprise
• Video Analytics: Server
• Wireless Headset, Keyboard, and Mouse
