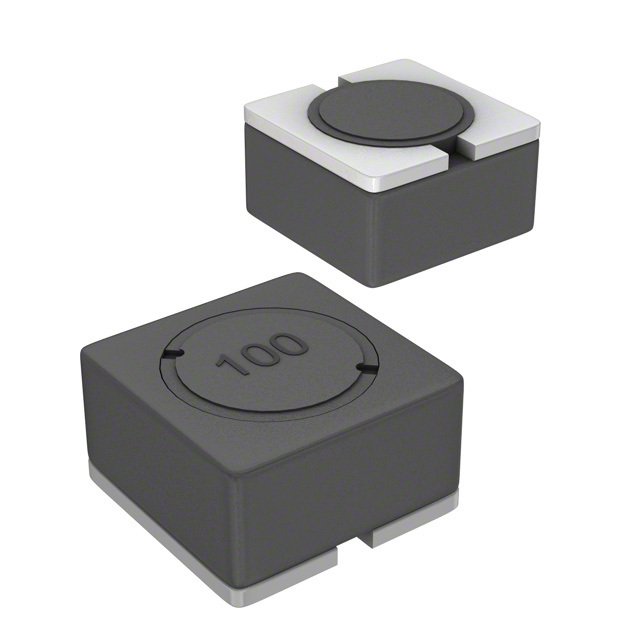

SRR6038-5R0Y

BOURNS  SRR6038-5R0Y  电感, 5uH, 2.9A, 30%, SMD

Inductor Power Shielded Wirewound 5uH 30% 100KHz 8.9Q-Factor Ferrite 2.9A 24mOhm DCR T/R

立创商城:
5uH ±30% 2.9A 24mΩ

得捷:
FIXED IND 5UH 2.9A 24 MOHM SMD

贸泽:
Fixed Inductors 5uH 30% SMD 6038

e络盟:
电感, 5uH, 2.9A, 30%, SMD

艾睿:
This power SRR6038-5R0Y surface mount inductor from Bourns is ideal for saving valuable space on a PCB. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 125 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This device is made with wirewound technology. Its test frequency is 100K Hz, while its minimum self-resonant frequency is 42.6MTyp Hz. It has an inductance of 5u H. This SMD inductor has a maximum DC current of 2.9 A with a maximum resistance of 24m Ohm. This product is 7 mm long, 4 mm tall and 7 mm deep.

安富利:
Ind Power Shielded Wirewound 5uH 30% 100KHz 8.9Q-Factor Ferrite 2.9A T/R

Chip1Stop:
Inductor Power Shielded Wirewound 5uH 30% 100KHz 8.9Q-Factor Ferrite 2.9A 24mOhm DCR T/R

Verical:
Inductor Power Shielded Wirewound 5uH 30% 100KHz 8.9Q-Factor Ferrite 2.9A 0.024Ohm DCR T/R

Newark:
# BOURNS  SRR6038-5R0Y  Surface Mount Power Inductor, SRR6038 Series, 5 µH, 2.9 A, 2.95 A, Shielded, 0.024 ohm

Online Components:
Inductor Power Shielded Wirewound 5uH 30% 100KHz 8.9Q-Factor Ferrite 2.9A 24mOhm DCR T/R

Electro Sonic:
Inductor Power Shielded Wirewound 5uH 30% 100KHz 8.9Q-Factor Ferrite 2.9A 0.024Ohm DCR T/R
