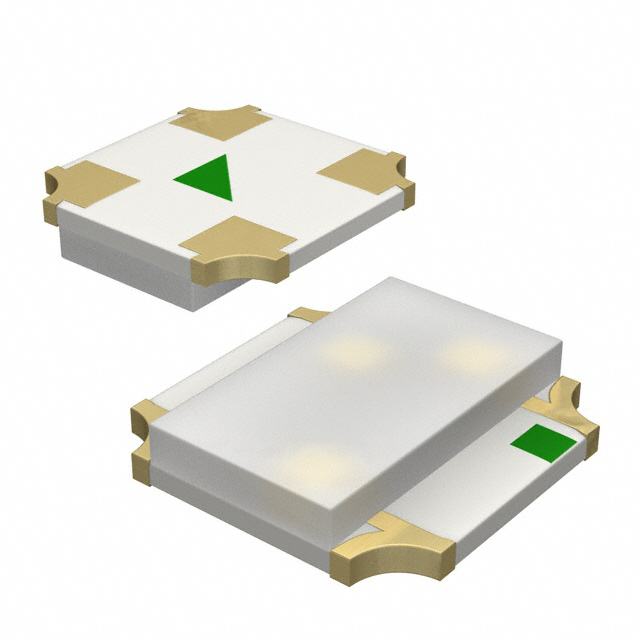

SMLP34 系列 0404 蓝色-绿色-红色 18/71/28 mcd 白色 漫射式 3/3.1/1.9 V LED
* The smallest class 3 color type in the world PICOLEDTM-RGB * 6pin type * Low height contributes to the improvement of color mixture * Size : 6pin type 1510 0604 1.5 x 1.0mm t=0.2mm
得捷:
LED RGB DIFFUSED PICOLED SMD
贸泽:
标准LED-SMD RECOMMENDED ALT 755-SMLP34RGB2W3
艾睿:
LED Tri-Color Blue/Green/Red 4-Pin Chip 04041010Metric T/R
安富利:
LED Tri-Color Blue/Green/Red 4-Pin Chip LED T/R
富昌:
SMLP34 Series Red/Green/Blue 0404 Diffused 35/110/45 mcd 2.1/3.1/3 V SMT LED
Chip1Stop:
LED Tri-Color Blue/Green/Red 4-Pin Chip 04041010Metric T/R
Verical:
LED Tri-Color Blue/Green/Red 4-Pin Chip 04041010Metric T/R
Win Source:
LED RGB DIFFUSED 0404 SMD
波长 624nm Red, 527nm Green, 470nm Blue
视角 135°
耗散功率 35 W
测试电流 5 mA
正向电流 20 mA
正向电流Max 20 mA
工作温度Max 85 ℃
工作温度Min -30 ℃
安装方式 Surface Mount
引脚数 4
封装 0404
长度 1 mm
宽度 1 mm
高度 0.25 mm
封装 0404
颜色 Red, Green, Blue RGB
产品生命周期 Not For New Designs
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SMLP34RGB1W3 ROHM Semiconductor 罗姆半导体 | 当前型号 | 当前型号 |
SMLP34RGB2W3 罗姆半导体 | 类似代替 | SMLP34RGB1W3和SMLP34RGB2W3的区别 |
