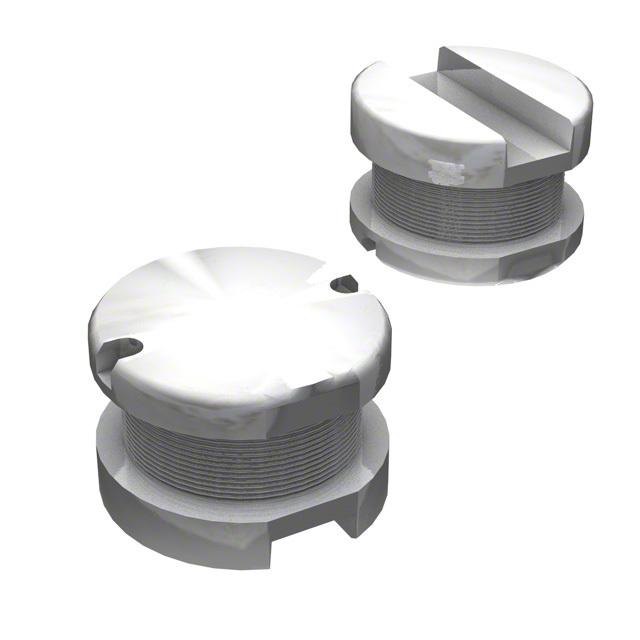

SDR0805-272KL

BOURNS  SDR0805-272KL  表面贴装功率电感器, SDR0805系列, 2.7 mH, ± 10%, 非屏蔽, 11.8 ohm, 120 mA

SDR0805 系列线绕扼流圈

提供 E12 系列

小型设计，最大直径仅 7.8mm

符合 RoHs

应用于直流/直流转换器的输入/输出以及电源

得捷:
FIXED IND 2.7MH 120MA 11.8OHM SM

欧时:
Bourns SDR0805 系列 铁氧体芯材 2.7 mH 绕线贴片电感器 SDR0805-272KL, ±10%容差, 120mA Idc

立创商城:
2.7mH ±10% 120mA 11.8Ω

e络盟:

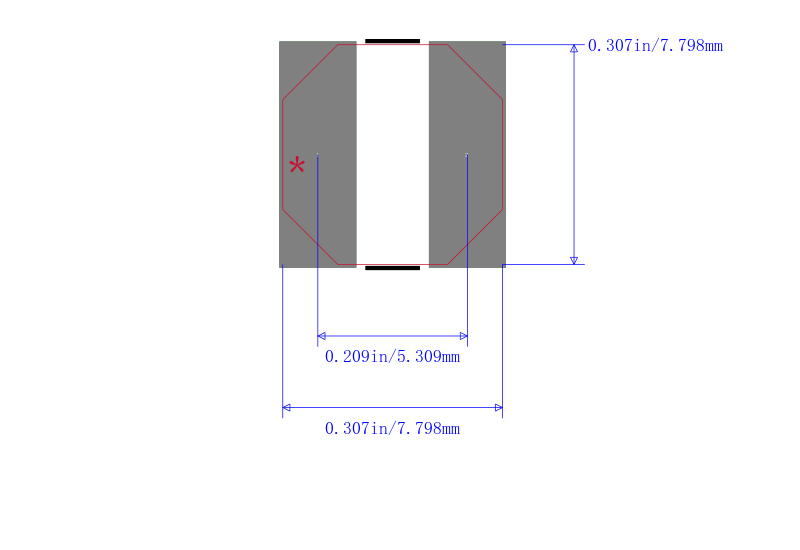

功率电感SMD, 2.7 mH, 120 mA, 非屏蔽, 180 mA, SDR0805系列, 7.8mm x 7.8mm x 5.3mm

艾睿:
This power SDR0805-272KL surface mount inductor from Bourns is available in all standard chip sizes in multilayer thick film and thin film deposition and wire wound styles. This SMD inductor has an operating temperature range of -40 °C to 125 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This product is 5.3 mm tall with a diameter of 7.8 mm. It has a tolerance of 10%. It has an inductance of 2.7m H. This SMD inductor has a maximum DC current of 120m A with a maximum resistance of 11.8 Ohm. Its test frequency is 1K Hz, while its minimum self-resonant frequency is 1M Hz. This device utilizes wirewound technology.

Allied Electronics:
SDR0805 WireWound SMDinductor w/ FerriteCore, 2.7 mH +/-10%WireWound 120mA Idc

安富利:
Ind Power Wirewound 2.7mH 10% 1KHz 31Q-Factor Ferrite 120mA T/R

Chip1Stop:
Inductor Power Wirewound 2.7mH 10% 1KHz 31Q-Factor Ferrite 120mA 11.8Ohm DCR T/R

Verical:
Inductor Power Unshielded Wirewound 2700uH 10% 1KHz 31Q-Factor Ferrite 0.12A 11.8Ohm DCR T/R

Newark:
# BOURNS  SDR0805-272KL  Surface Mount Power Inductor, SDR0805 Series, 2.7 mH, 10%, Unshielded, 11.8 ohm, 120 mA

Online Components:
Inductor Power Wirewound 2.7mH 10% 1KHz 31Q-Factor Ferrite 120mA 11.8Ohm DCR T/R

Electro Sonic:
Inductor Power Wirewound 2.7mH 10% 1KHz 31Q-Factor Ferrite 120mA 11.8Ohm DCR T/R

Win Source:
FIXED IND 2.7MH 120MA 11.8OHM SM / 2.7 mH Unshielded Drum Core, Wirewound Inductor 120 mA 11.8Ohm Max Nonstandard
