并联负载8位移位寄存器 PARALLEL-LOAD 8-BIT SHIFT REGISTERS
description
The ’165 and ’LS165A are 8-bit serial shift registers that shift the data in the direction of QA toward QH when clocked. Parallel-in access to each stage is made available by eight individual,
direct data inputs that are enabled by a low level at the shift/load SH/LD input. These registers
also feature gated clock CLK inputs and complementary outputs from the eighth bit. All inputs are diode-clamped to minimize transmission-line effects, thereby simplifying system design.
Complementary Outputs
Direct Overriding Load Data Inputs
Gated Clock Inputs
Parallel-to-Serial Data Conversion
电源电压DC 4.75V ~ 5.25V
输出接口数 1
电路数 1
位数 8
电压波节 5.00 V
输出电流驱动 -50.0 µA
输入数 9
工作温度Max 70 ℃
工作温度Min 0 ℃
电源电压 4.75V ~ 5.25V
电源电压Max 5.25 V
电源电压Min 4.75 V
安装方式 Surface Mount

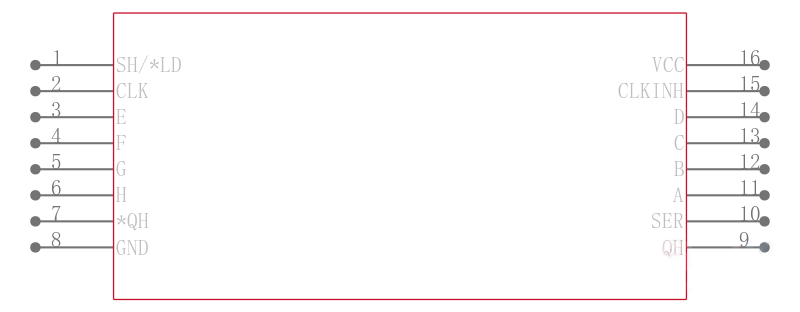

引脚数 16

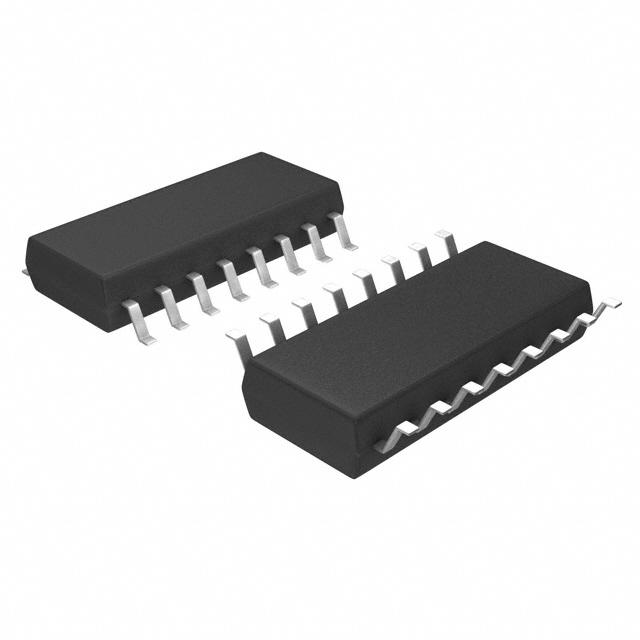

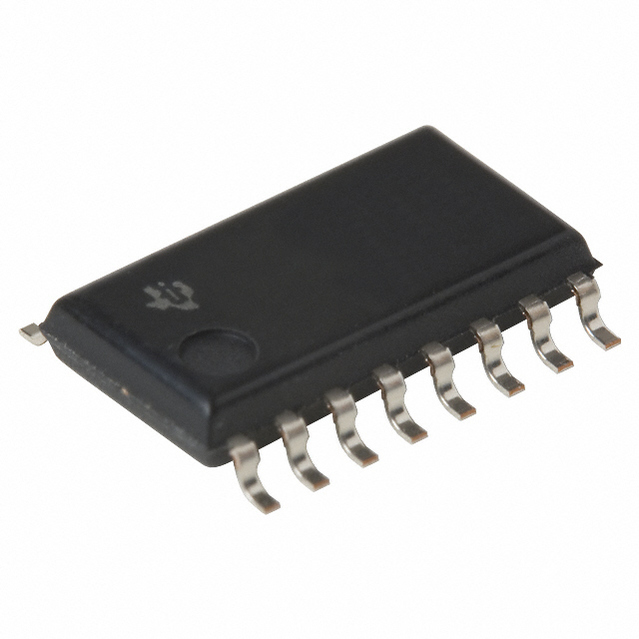

封装 SOP-16
长度 10.3 mm
宽度 5.3 mm
高度 1.95 mm
封装 SOP-16
工作温度 0℃ ~ 70℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SN74LS165ANSR TI 德州仪器 | 当前型号 | 当前型号 |
SN74LS165ANSRG4 德州仪器 | 完全替代 | SN74LS165ANSR和SN74LS165ANSRG4的区别 |
