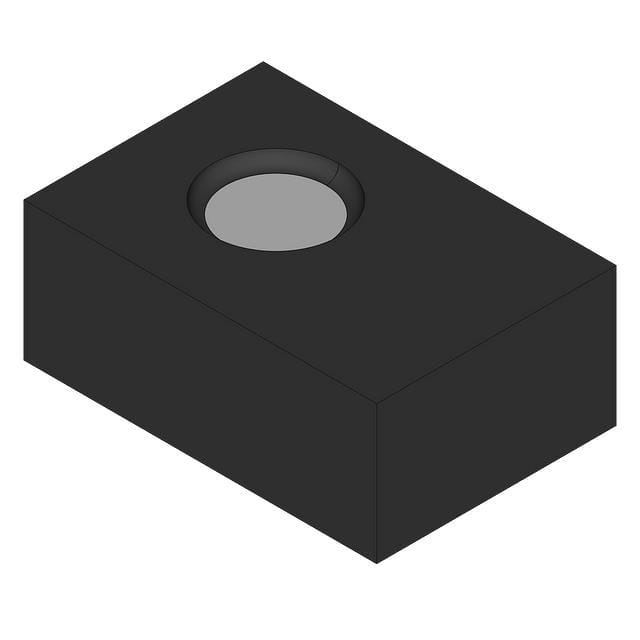

SN74LVC1G34DRYR

单路缓冲门 6-SON -40 to 125

Description

This single buffer gate is designed for 1.65-V to 5.5-V VCC operation.

The SN74LVC1G34 device performs the Boolean function Y = A in positive logic.

The CMOS device has high output drive while maintaining low static power dissipation over a broad VCC

Operating range.

The SN74LVC1G34 is available in a variety of packages, including the ultra-small DPW package with a body size of 0.8 mm × 0.8 mm.

Features

• Available in the Ultra Small 0.64-mm2 Package DPW with 0.5-mm Pitch

• Supports 5-V VCC Operation

• Inputs Accept Voltages to 5.5 V

• Provides Down Translation to VCC

• Max tpd of 3.5 ns at 3.3 V

• Low Power Consumption, 1-μA Max ICC

• ±24-mA Output Drive at 3.3 V

• Ioff Supports Live Insertion, Partial Power Down Mode, and Back Drive Protection

• Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II

• ESD Protection Exceeds JESD 22

– 2000-V Human-Body Model A114-A

– 200-V Machine Model A115-A

– 1000-V Charged-Device Model C101

2 Applications

• AV Receiver

• Audio Dock: Portable

• Blu-ray Player and Home Theater

• DVD Recorder and Player

• Embedded PC

• MP3 Player/Recorder Portable Audio

• Personal Digital Assistant PDA

• Power: Telecom/Server AC/DC Supply: Single Controller: Analog and Digital

• Solid State Drive SSD: Client and Enterprise

• TV: LCD/Digital and High-Definition HDTV

• Tablet: Enterprise

• Video Analytics: Server

• Wireless Headset, Keyboard, and Mouse
