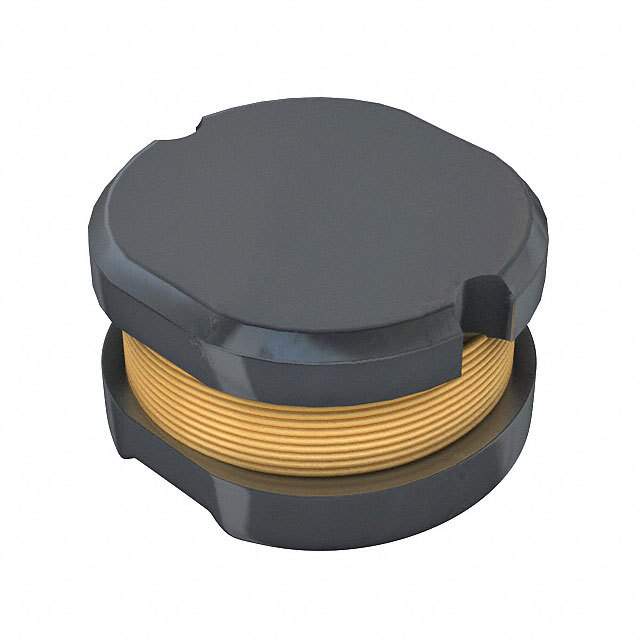

SDR0302-180ML

BOURNS  SDR0302-180ML  表面贴装功率电感器, SDR0302系列, 18 µH, ± 20%, 非屏蔽, 0.46 ohm, 580 mA

无屏蔽 绕线 器 460 毫欧最大 非标准

得捷:
FIXED IND 18UH 580MA 460MOHM SMD

立创商城:
18uH ±20% 580mA 460mΩ

e络盟:
功率电感SMD, 18 µH, 580 mA, 非屏蔽, 750 mA, SDR0302系列, 3mm x 2.8mm x 2.5mm

艾睿:
This power SDR0302-180ML surface mount inductor from Bourns is available in all standard chip sizes in multilayer thick film and thin film deposition and wire wound styles. This SMD inductor has an operating temperature range of -40 °C to 125 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This SMD inductor has a maximum DC current of 580m A with a maximum resistance of 460m Ohm. This product is 3.3 mm long, 2.8 mm tall and 3.1 mm deep. It has an inductance of 18u H. This device utilizes wirewound technology. Its test frequency is 1K Hz, while its minimum self-resonant frequency is 28M Hz. It has a tolerance of 20%.

安富利:
Ind Power Wirewound 18uH 20% 1KHz 18Q-Factor Ferrite 580mA T/R

Verical:
Inductor Power Unshielded Wirewound 18uH 20% 100KHz 18Q-Factor Ferrite 0.58A 0.46Ohm DCR Automotive T/R

Newark:
# BOURNS  SDR0302-180ML  Surface Mount Power Inductor, SDR0302 Series, 18 H, 20%, Unshielded, 0.46 ohm, 580 mA

Electro Sonic:
Inductor Power Wirewound 18uH 20% 100KHz 18Q-Factor Ferrite 580mA 460mOhm DCR Automotive T/R
